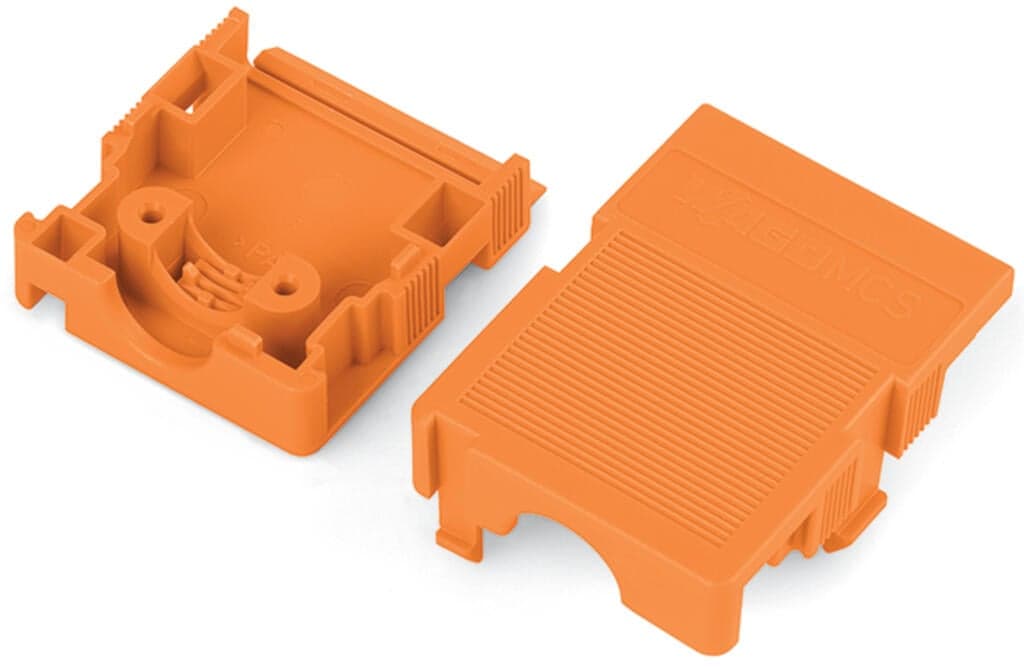

232-632
Product ID:47121
Updated: 2026/7/13
Key Features
- 1Snap-on design for easy installation
- 25.08 mm pin spacing for precise connection
- 3Orange color for easy identification
- 4Suitable for cable ties and clamps
- 5Fast delivery within 7 days
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pin spacing | 5.08?mm?/ 0.2?inches | Width | 13?mm?/ 0.512?inches |
| Height | 17.5?mm?/ 0.689?inches | Depth | 41.5?mm?/ 1.634?inches |
| Suitable | for standard male and female connectors | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.092MJ | Weight | 3.1g |
| Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-44-04-92 | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332290319 |
| Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
| Number of poles | 2 |
Specifications may be subject to change without notice
