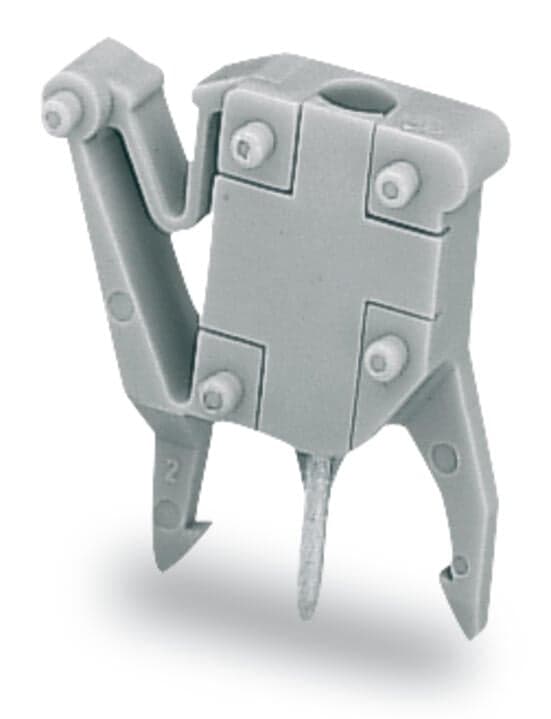

249-114
Product ID:49412
Updated: 2026/7/13
Key Features
- 1Precision Testing: Designed for series 255, 256, and 257 terminal blocks.
- 2Easy Installation: One-pole testing adapter with a 10mm grid for precise connections.
- 3Durability: Made to withstand rigorous testing conditions.
- 4Versatile Use: Compatible with various terminal block configurations.
- 5High-Quality Materials: Constructed from robust materials for long-lasting performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pin spacing | 10?mm?/ 0.394?inches | Width | 10?mm?/ 0.394?inches |
| Height | 21.5?mm?/ 0.846?inches | Depth | 19.5?mm?/ 0.768?inches |
| Suitable | for PCB terminal blocks (255, 256, 257 Series); with socket for 2 mm and 2.3 mm ? test plugs | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.037MJ | Weight | 1.7g |
| Limit temperature range | -60 … +105?°C | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-14-11-48 | eCl@ss 9.0 | 27-14-11-48 |
| ETIM 9.0 | EC002255 | ETIM 8.0 | EC002255 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
| Packaging type | box | Country of origin | CH |
| GTIN | 4045454306854 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Rated current | 6A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Number of poles | 1 |
Specifications may be subject to change without notice
