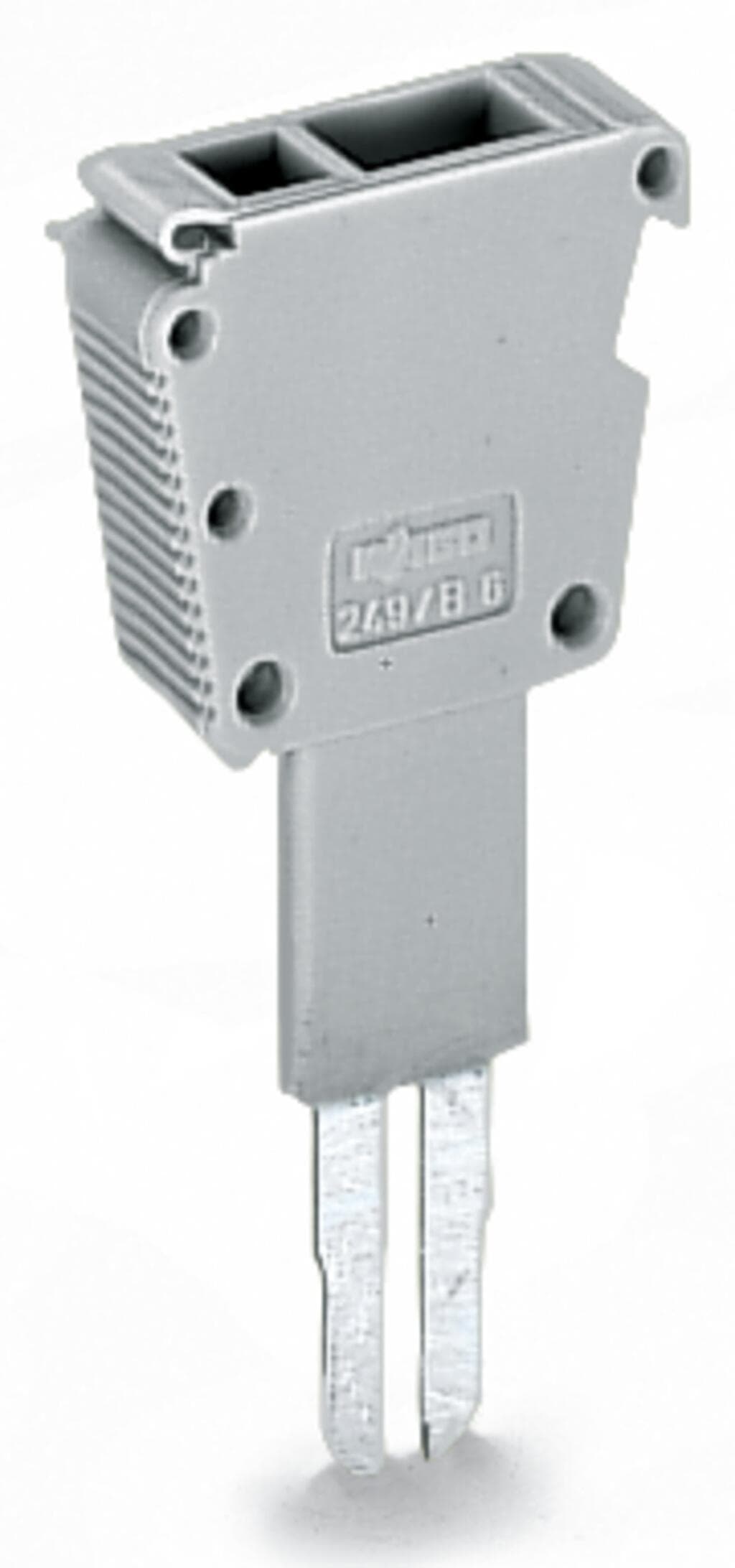

249-147
Product ID:41558
Updated: 2026/7/16
Key Features
- 1Modular design for easy installation and customization.
- 2Compatible with 2.5mm² connections, ensuring secure electrical connections.
- 3CAGE CLAMP spring connections for reliable and efficient connections.
- 4Available in gray color, enhancing visibility in various environments.
- 5Packaged in sets of 25, convenient for bulk purchases and inventory management.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | These test plugs are not suitable for Ex e applications. | Clamping units | 1 |
| Total number of potentials | 1 | Width | 6?mm?/ 0.236?inches |
| Module width | 6?mm?/ 0.236?inches | Marking level | Side marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V2 |
| Fire load | 0.036MJ | Weight | 2.5g |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-48 |
| eCl@ss 9.0 | 27-14-11-48 | ETIM 9.0 | EC002555 |
| ETIM 8.0 | EC002555 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454265120 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Test voltage | 630V |
| Test current | 10A | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 1 |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
