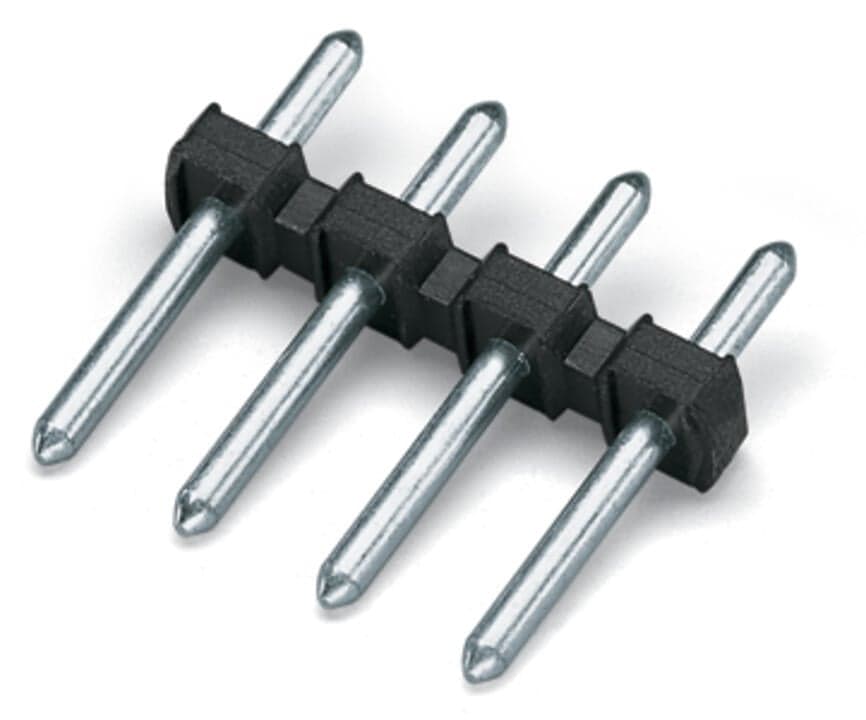

252-906
Product ID:50033
Updated: 2026/7/13
Key Features
- 1Industry-leading connectivity solution for industrial applications.
- 2Robust design ensures high reliability and durability.
- 3Versatile mounting options for flexible installation.
- 4Easy-to-use connectors simplify wiring and maintenance.
- 5Compatible with a wide range of industrial systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
| Solder pin length | 3.5mm | Solder pin diameter | 1mm |
| Drilled hole diameter with tolerance | 1.2(+0.05)mm | Suitable | Pin spacing: 3.5 mm / 0.138 inch |
| Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for PCB |
| Mating direction to the PCB | 90° | PCB contact | THT |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Weight | 0.6g | Product Group | 4 (Printed Circuit Connectors) |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 500?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918984287 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Number of poles | 6 |
Specifications may be subject to change without notice
