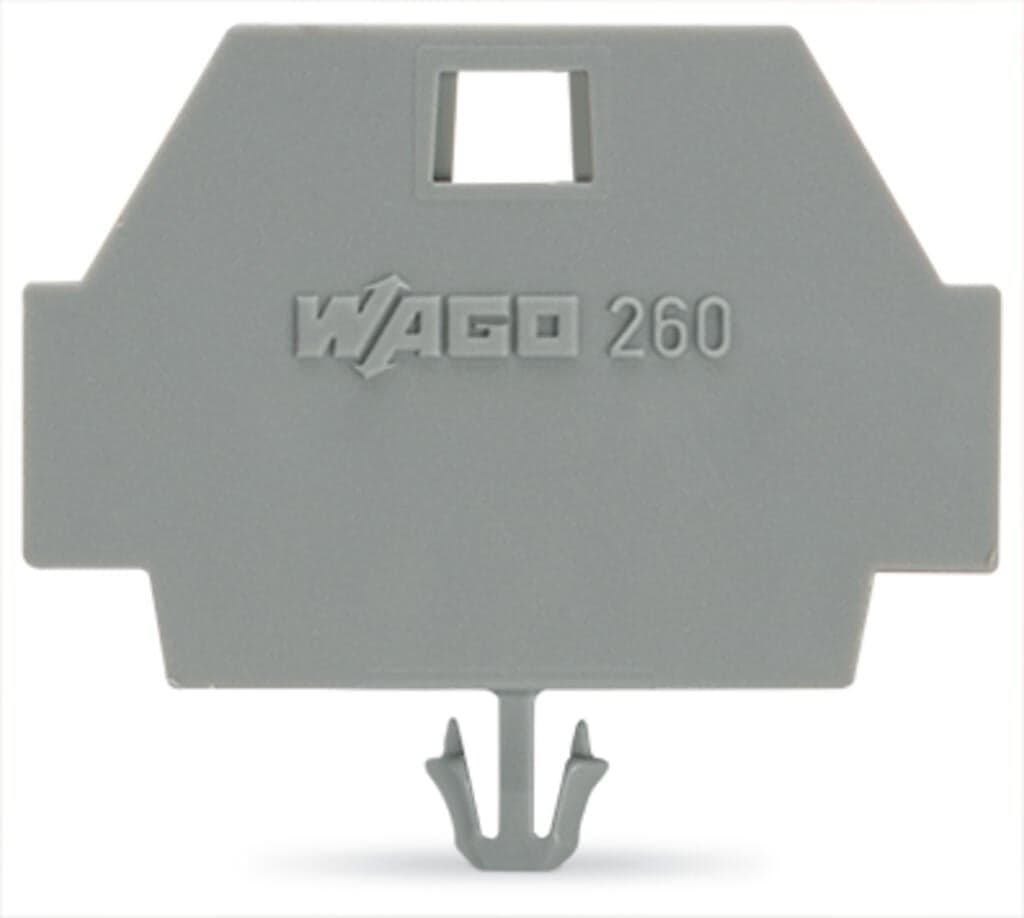

260-371
Product ID:41231
Updated: 2026/7/15
Key Features
- 1Snap-in Mounting Foot: Easy installation with snap-in mounting foot.
- 2Gray Color: Available in gray color for easy identification.
- 3Compact Dimensions: Dimensions of 25mm x 17mm x 3mm for space efficiency.
- 4Durable Material: Made from high-quality polyamide (PA66) for durability.
- 5Versatile Use: Compatible with a variety of terminal blocks and DIN rail systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 3?mm?/ 0.118?inches | Height | 17?mm?/ 0.669?inches |
| Depth | 25?mm?/ 0.984?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.025MJ | Weight | 0.9g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 300?(50)?pcs | Packaging type | box |
| Country of origin | CH | GTIN | 4017332285308 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
