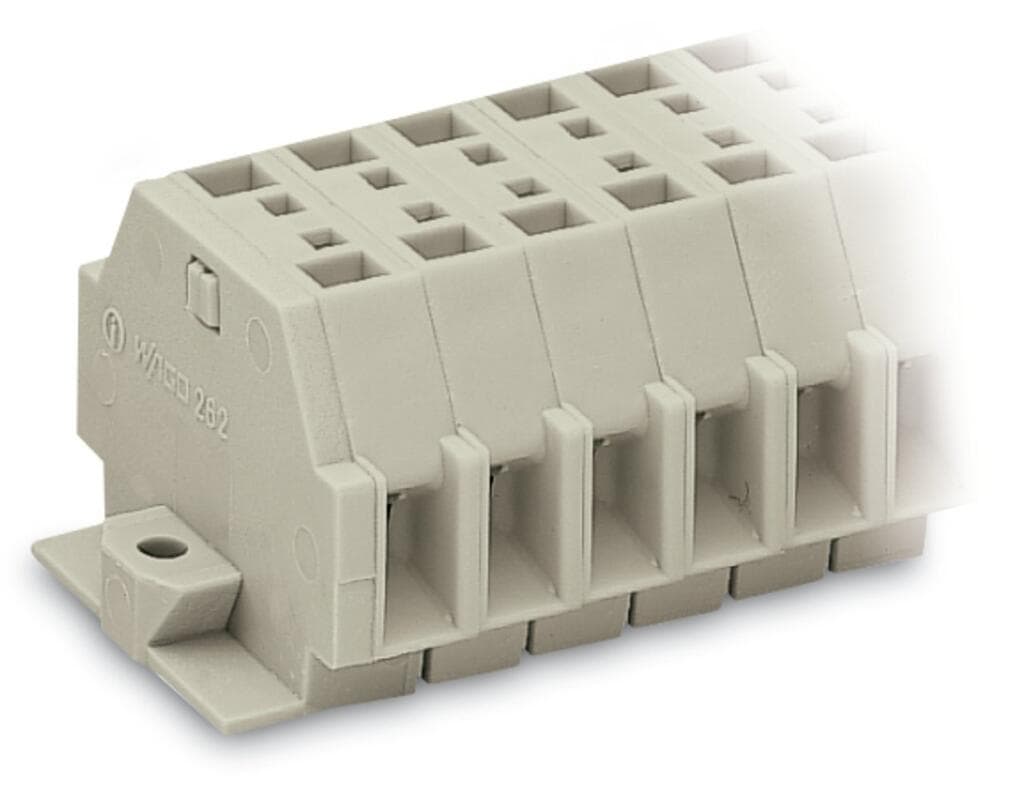

262-137
Product ID:39910
Updated: 2026/7/15
Key Features
- 1Designed for hazardous environments with high safety standards.
- 2Secure and reliable connection technology for solid conductors.
- 3Accommodates multiple wires with 14 total connection points.
- 4Easy identification in electrical installations.
- 5Versatile mounting options for screw or similar types.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 14 | Total number of potentials | 7 |
| Number of levels | 1 | Width | 63.4?mm?/ 2.496?inches |
| Height from the surface | 23.1?mm?/ 0.909?inches | Depth | 33.5?mm?/ 1.319?inches |
| Module width | 7?mm?/ 0.276?inches | Design | horizontal type |
| Mounting type | Mounting flange | Marking level | Side marking |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.595MJ |
| Halogen-free | Yes | Weight | 32.2g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918639965 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
| Rated voltage EN (Ex e II) | 550V | Rated current (Ex e II) | 23A |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
| Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
| Number of poles | 7 | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
