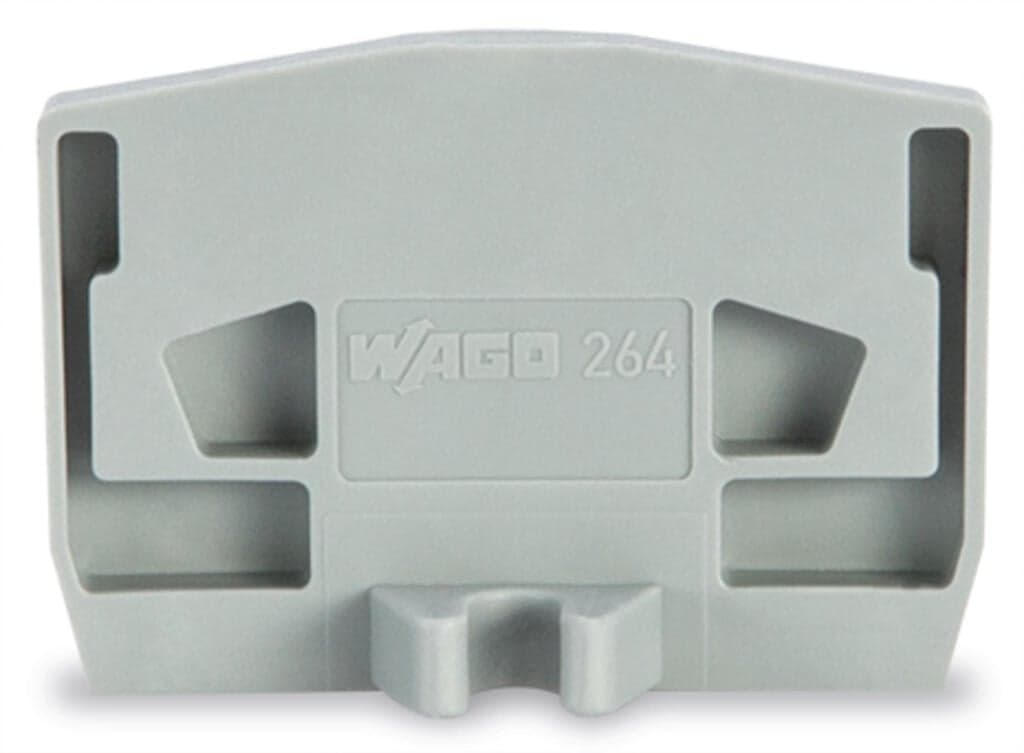

264-363
Product ID:48275
Updated: 2026/7/15
Key Features
- 1Light Gray Color: Durable and easy-to-clean light gray finish.
- 2Chassis Mount: Designed for secure mounting on chassis surfaces.
- 34 mm Thickness: Robust construction for reliable performance.
- 4Depth: 32 mm / 1.26 in.: Compact size for efficient use in terminal blocks.
- 5Fire Load: 0.059 MJ: Meets high fire safety standards with minimal fire load.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 4?mm?/ 0.157?inches | Height | 22.1?mm?/ 0.87?inches |
| Depth | 32?mm?/ 1.26?inches | Note (material data) | Information on material specifications can be found here |
| Color | light gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.056MJ | Weight | 2g |
| Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4017332199438 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
