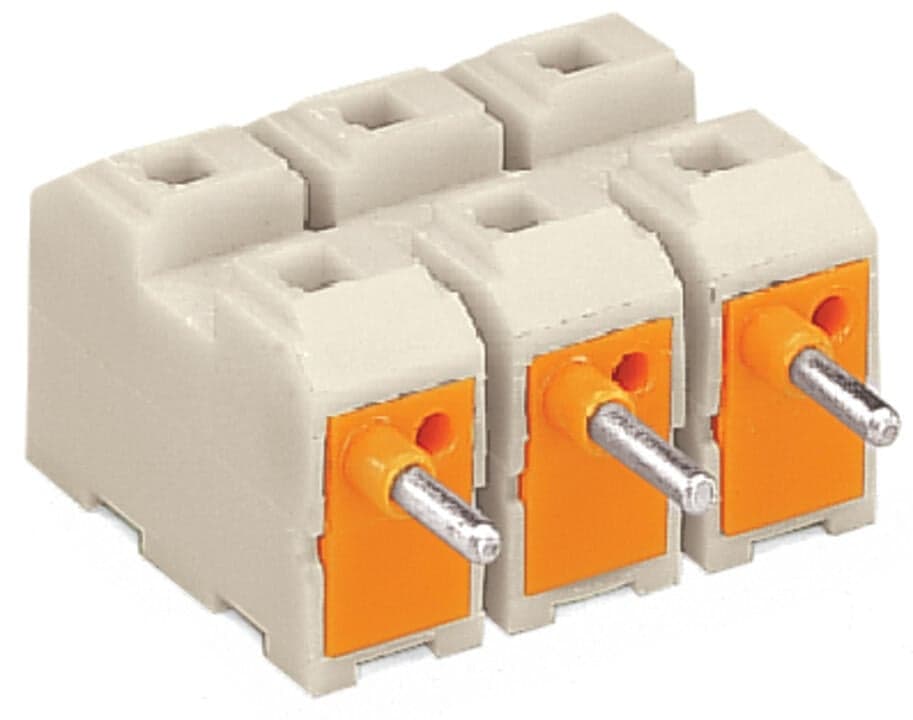

272-453/272-485
Product ID:47836
Updated: 2026/7/13
Key Features
- 1High-reliability connectors with a long lifespan.
- 2Easy-to-use push-in technology for quick connections.
- 3Suitable for a wide range of industrial applications.
- 4Compact design for space-saving installations.
- 5Durable and resistant to environmental factors.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 6 | Total number of potentials | 3 |
| Number of connection types | 1 | Width | 33?mm?/ 1.299?inches |
| Height | 15.3?mm?/ 0.602?inches | Depth | 34?mm?/ 1.339?inches |
| Note (material data) | Information on material specifications can be found here | Color | white |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V2 | Fire load | 0.152MJ |
| Weight | 10.5g | Product Group | 8 (Misc. Chassis Mount Blocks) |
| eCl@ss 10.0 | 27-44-03-14 | eCl@ss 9.0 | 27-44-03-14 |
| ETIM 9.0 | EC002560 | ETIM 8.0 | EC000458 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 500?pcs |
| Packaging type | bag | Country of origin | DE |
| GTIN | 4044918431682 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III/2) | 200V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 400V | Rated surge voltage (II/2) | 4kV |
| Rated current | 16A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Connection technology | PUSH WIRE? | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Number of poles | 3 |
Specifications may be subject to change without notice
