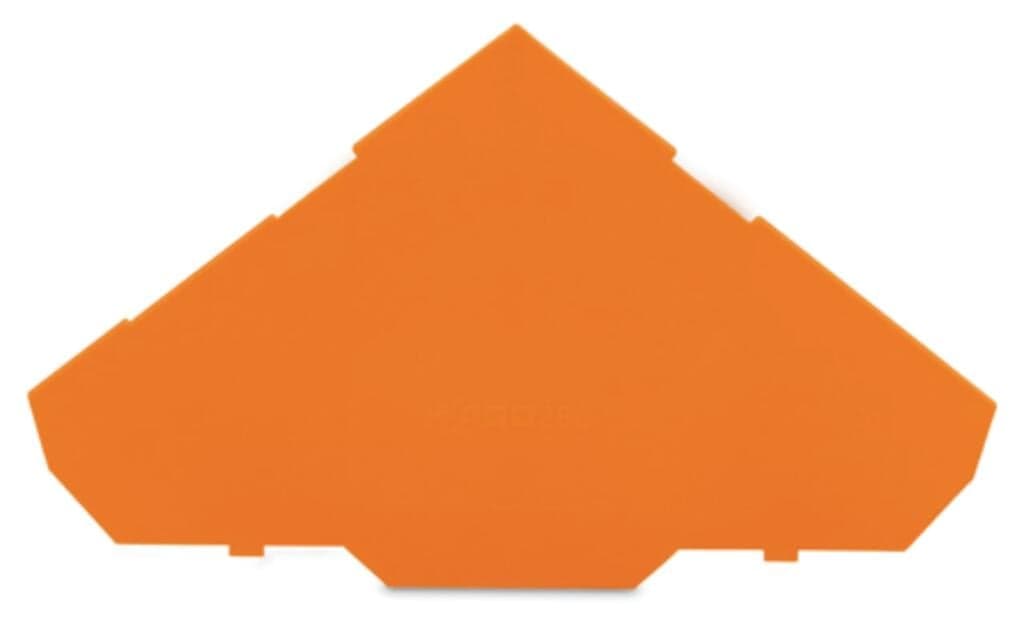

280-321
Product ID:39765
Updated: 2026/7/15
Key Features
- 10.08 MJ fire load ensures reliable performance in harsh environments.
- 2Made from 1 mm thick polyamide 6.6 for long-lasting durability.
- 3Compatible with rail-mounted terminal blocks, simplifying your installation process.
- 4Suitable for triple-deck terminal blocks, offering multiple connection options.
- 5Meets RoHS compliance and is certified by DEKRA and UL for safety and performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1?mm?/ 0.039?inches | Height | 80?mm?/ 3.15?inches |
| Depth | 55.5?mm?/ 2.185?inches | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.08MJ | Weight | 2.7g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4017332292641 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
