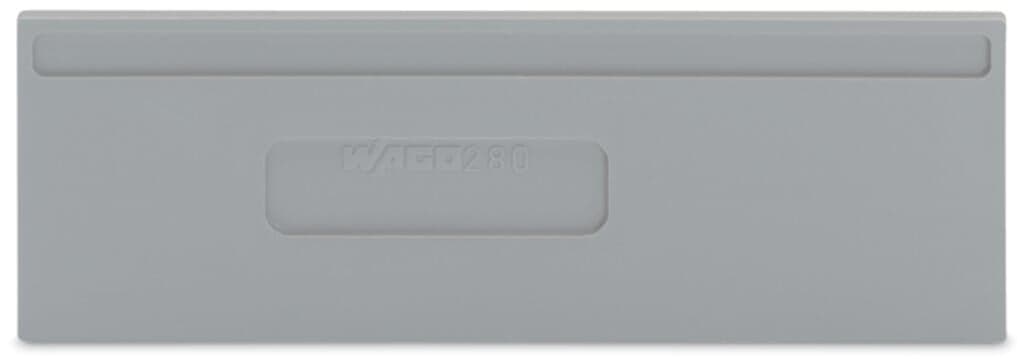

280-334
Product ID:41180
Updated: 2026/7/15
Key Features
- 1Made from durable, RoHS compliant material for long-lasting performance.
- 2Oversized design ensures secure connections in DIN rail terminal blocks.
- 3Simple to integrate with WAGO's 280 series rail mounted terminal blocks.
- 4Available in a sleek gray finish for easy identification.
- 5Measures 2 mm thick, 75 mm deep, and 26.4 mm high for space-efficient use.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2?mm?/ 0.079?inches | Height | 75?mm?/ 2.953?inches |
| Depth | 26.4?mm?/ 1.039?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.09MJ | Weight | 3g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332299480 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
