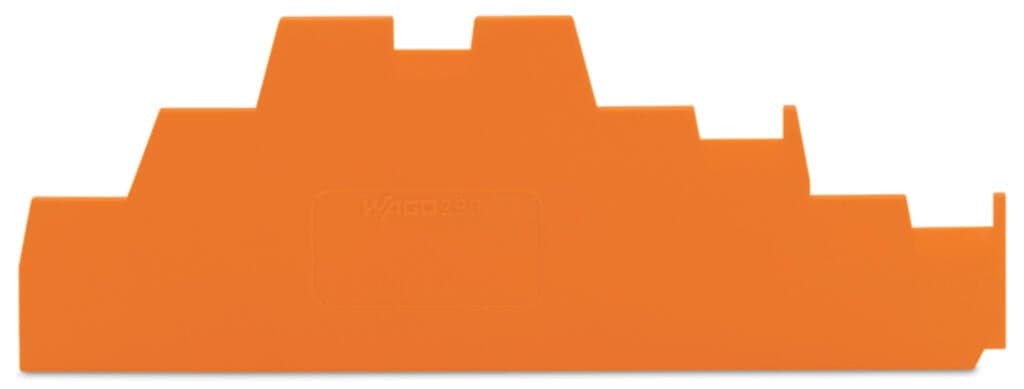

280-339
Product ID:39201
Updated: 2026/7/13
Key Features
- 1Durable and reliable terminal block solution.
- 2Ideal for rail and chassis mounting applications.
- 31.1 mm thick for added strength and stability.
- 4Available in orange color for easy identification.
- 5Compatible with WAGO's extensive range of terminal blocks.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1.1?mm?/ 0.043?inches | Height | 113?mm?/ 4.449?inches |
| Depth | 50?mm?/ 1.969?inches | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.13MJ | Weight | 4.3g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332262484 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
