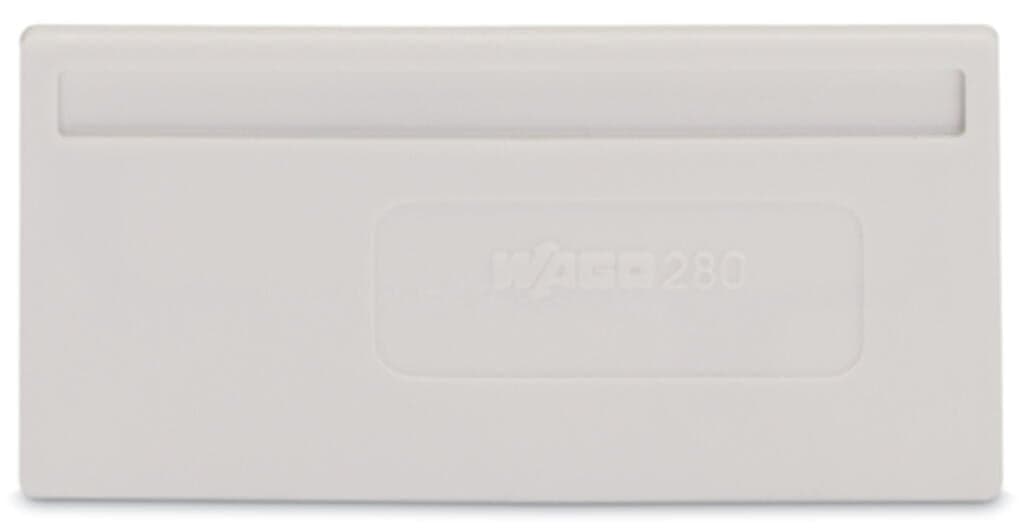

280-357
Product ID:39923
Updated: 2026/7/15
Key Features
- 1Durable construction from Polyamide (PA) 66 for long-lasting performance.
- 2Oversized design for enhanced separation and partitioning in electrical installations.
- 3Rated impulse voltage (Uimp) of 2 mm for reliable operation in various environments.
- 4Compatible with DIN rail terminal blocks, ensuring seamless integration.
- 5Available in light gray color, suitable for a wide range of applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2?mm?/ 0.079?inches | Height | 52.5?mm?/ 2.067?inches |
| Depth | 26.4?mm?/ 1.039?inches | Note (material data) | Information on material specifications can be found here |
| Color | light gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.059MJ | Weight | 1.9g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4017332199254 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
