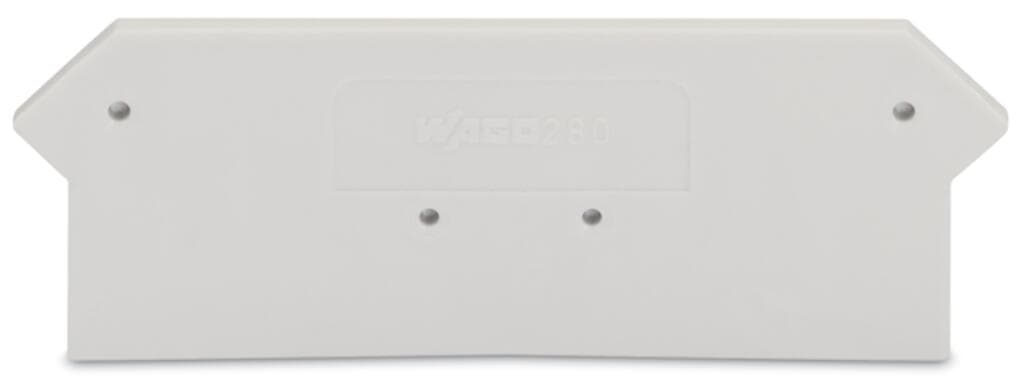

280-364
Product ID:39924
Updated: 2026/7/15
Key Features
- 1Made from high-quality polyamide (PA66) for long-lasting performance.
- 2Easy to identify and integrate into your electrical setup.
- 32.5 mm thick, 72.8 mm long, and 28 mm high for efficient use in tight spaces.
- 4Meets UL94 V0 flammability class for enhanced safety.
- 5Environmentally friendly, compliant with RoHS regulations for sustainable practices.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2.5?mm?/ 0.098?inches | Height | 72.8?mm?/ 2.866?inches |
| Depth | 28?mm?/ 1.102?inches | Note (material data) | Information on material specifications can be found here |
| Color | light gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.108MJ | Weight | 3.6g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4017332627047 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
