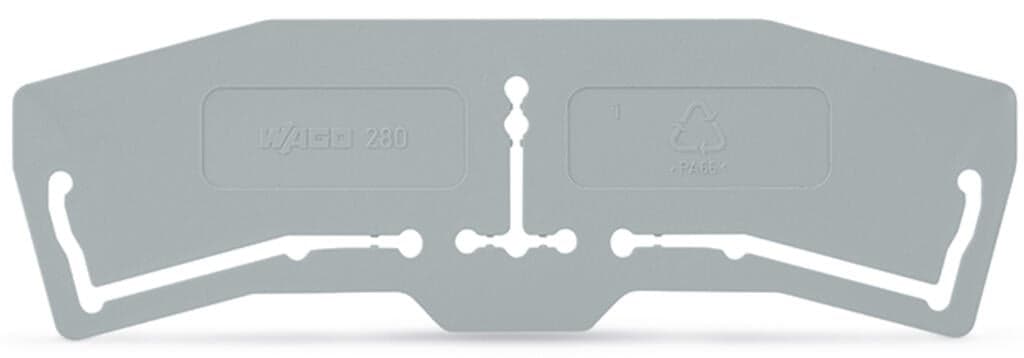

280-394
Product ID:48594
Updated: 2026/7/14
Key Features
- 1High-quality 3D CAD models available for free download.
- 2Ideal for rail-mounted terminal blocks in industrial applications.
- 31 mm thick separator plate with 3 mm oversized design.
- 4Insulated jumper included for secure connections.
- 5Compatible with WAGO's Series 280 terminal blocks.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2?mm?/ 0.079?inches | Height | 99.2?mm?/ 3.906?inches |
| Depth | 31.6?mm?/ 1.244?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.09MJ | Weight | 2.8g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
| ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143031035 | Customs tariff number | 8538906000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
