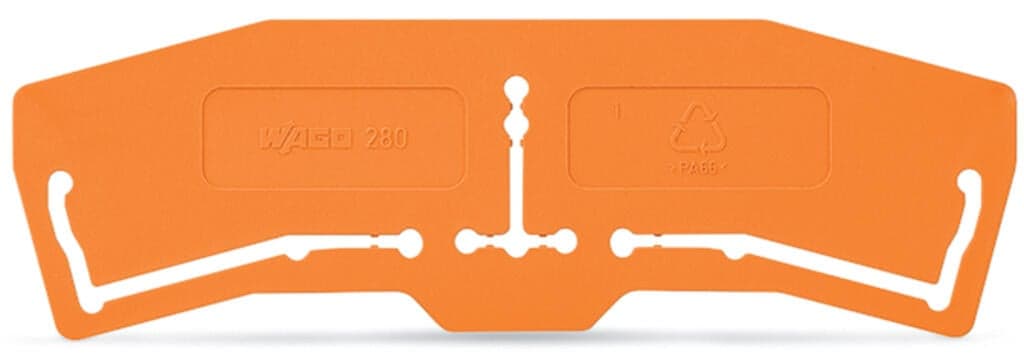

280-395
Product ID:39761
Updated: 2026/7/15
Key Features
- 11 mm thick separator plate for precise separation.
- 23 mm oversized for easy installation and adjustment.
- 3Made of durable polyamide (PA66) material.
- 4Compliant with RoHS and UL94 V0 for environmental and fire safety.
- 5Available in packs of 100 pieces (25 pieces per unit).
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2?mm?/ 0.079?inches | Height | 99.2?mm?/ 3.906?inches |
| Depth | 31.6?mm?/ 1.244?inches | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.077MJ | Weight | 2.6g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
| ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143031042 | Customs tariff number | 85389099990 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
