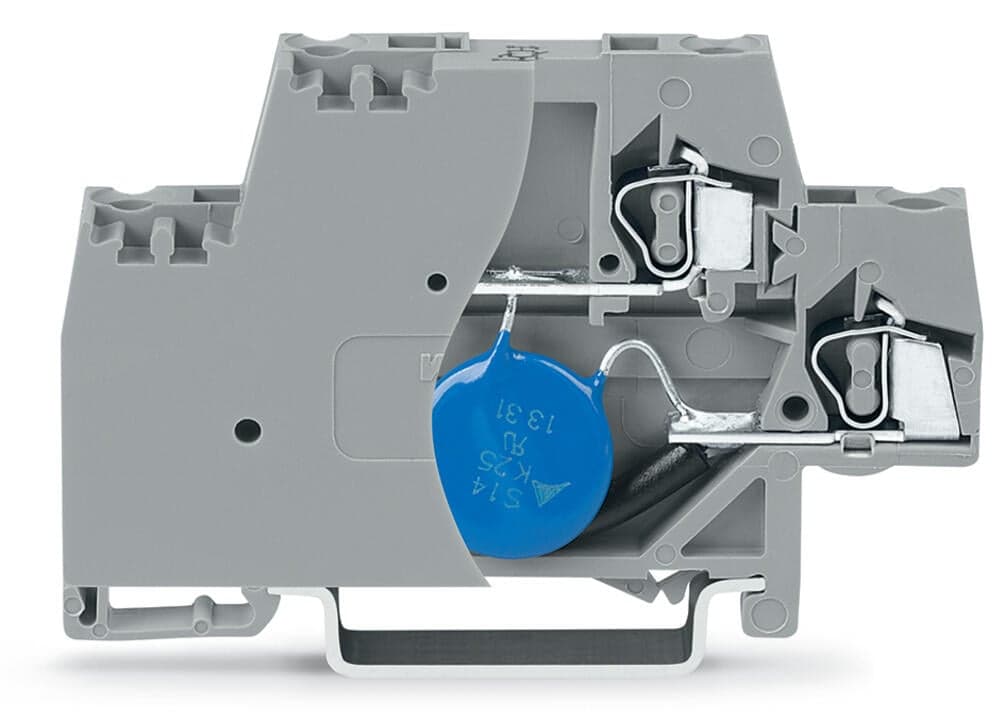

280-504/281-585
Product ID:42036
Updated: 2026/7/13
Key Features
- 1Protects against overvoltage with built-in MOV varistor.
- 2Slim, space-saving design for efficient installation.
- 3High operational reliability and system uptime.
- 4Rated for 110VDC and 20A continuous current.
- 5Compatible with DIN-35 rail mounting and CAGE CLAMP connections.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal operating voltage | DC?110?V | Maximum continuous voltage | DC?150?V |
| Rated continuous current | 20A | Nominal discharge current (8/20?μs) (line) | 1?kA |
| Discharge current (max.) | 4.5kA | Protection level (8/20?μs) | ≤?DC 300?V |
| Capacitance | ≤?800?pF | Connections (number) | 4 |
| Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Width | 10?mm?/ 0.394?inches | Height | 64 mm / 2.52 inches |
| Depth from upper-edge of DIN-rail | 39.5 mm / 1.555 inches | Design | with end plate |
| Mounting type | DIN-35 rail | Color | gray |
| Insulation material (main housing) | Polyamide (PA66) | Material group | I |
| Flammability class per UL94 | V0 | Fire load | 1.43MJ |
| Weight | 15.1g | Processing temperature | -35 … +85?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
| ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?(1)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4050821666059 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
