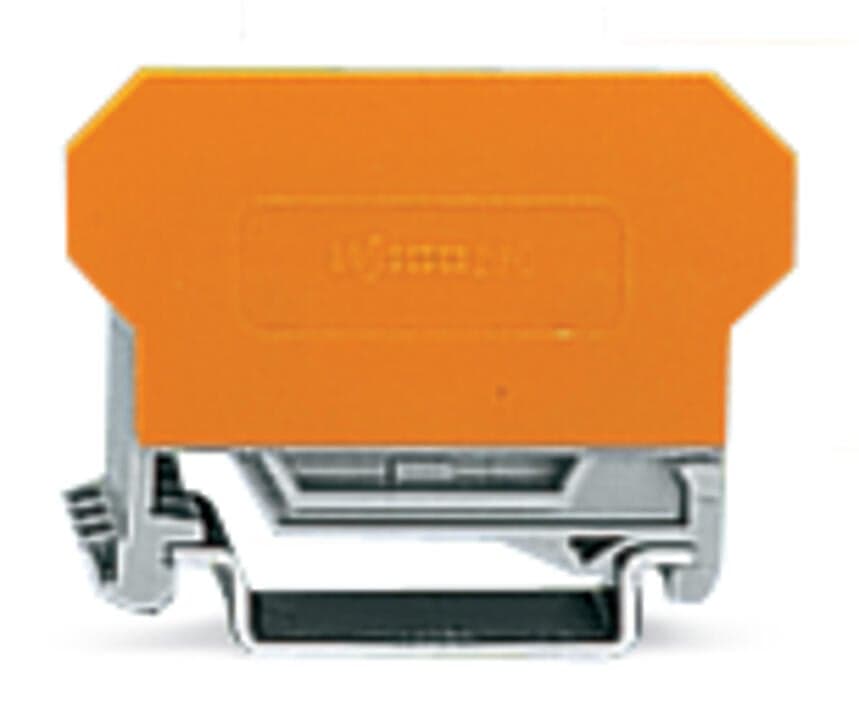

280-619
Product ID:42324
Updated: 2026/7/16
Key Features
- 16-position terminal block for pluggable modules.
- 210A rated current for reliable connections.
- 32.5mm² conductor area for efficient wiring.
- 4DIN rail mounting for easy installation.
- 5CAGE CLAMP technology for secure connections.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated continuous current | 10A | Rated voltage | 400V |
| Rated surge voltage | 6kV | Pollution degree | 3 |
| Total number of potentials | 2 | Number of connection types | 2 |
| Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Wiring direction | Front-entry wiring | Width | 17?mm?/ 0.669?inches |
| Height | 50?mm?/ 1.969?inches | Depth from upper-edge of DIN-rail | 28?mm?/ 1.102?inches |
| Mounting type | DIN-35 rail | Color | gray |
| Insulation material (main housing) | Polyamide (PA66) | Material group | I |
| Flammability class per UL94 | V0 | Fire load | 0.5MJ |
| Weight | 16.1g | Processing temperature | -35 … +85?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-20 |
| eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
| ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 30?(1)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918538770 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
