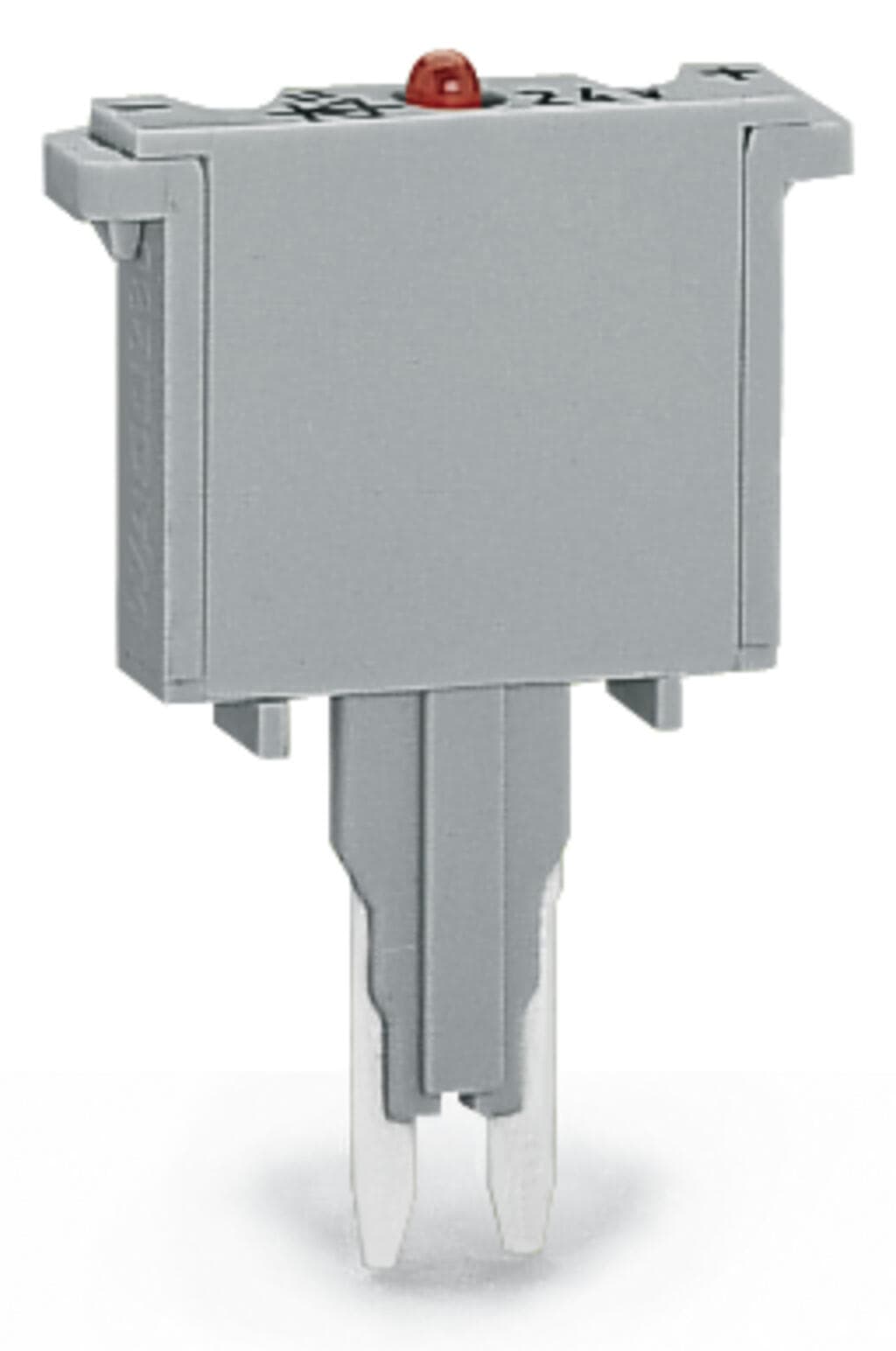

280-850/281-414
Product ID:49252
Updated: 2026/7/13
Key Features
- 1Compact design with 5 mm width.
- 2Soldered miniature fuse for reliable protection.
- 3LED indicator lamp for easy status monitoring.
- 4Suitable for DC 30-65V, 250mA FF applications.
- 5Free downloadable 3D CAD models available.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 5?mm?/ 0.197?inches | Marking level | without marking level |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.115MJ |
| Weight | 2.8g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-49 | eCl@ss 9.0 | 27-14-11-49 |
| ETIM 9.0 | EC002018 | ETIM 8.0 | EC002018 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454362720 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 125V |
| Rated current | 5A | Operation status indicator | 30 … 65?V |
| Ratings (note) | Electrical ratings are given by the fuse and blown fuse indication. | Rated current (note) | Leakage current in case of a blown fuse: LED 5 … 20 mA |
| Voltage type 1 | DC | Fuse type | Miniature fuse; 250 mA FF |
Specifications may be subject to change without notice
