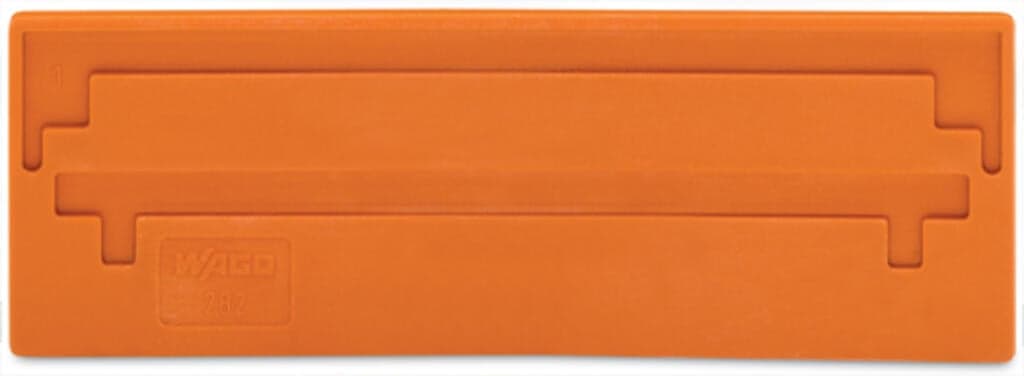

282-340
Product ID:48188
Updated: 2026/7/15
Key Features
- 1The WAGO 282-340 features CAGE CLAMP technology, ensuring secure connections without wire damage.
- 2Designed for compact installations, accommodating three phases and one ground conductor in a single terminal block.
- 3Suitable for wire sizes from 0.08 mm² to 35 mm², with automatic clamping forces adjusting to conductor cross-sections.
- 4Eliminates the need for wire preparation like crimps, ferrules, or tinning, reducing installation time and costs.
- 5Meets IEC/EN 60947-7-1 ratings, ensuring compliance with international electrical standards for safety and performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2?mm?/ 0.079?inches | Height | 91.9?mm?/ 3.618?inches |
| Depth | 31?mm?/ 1.22?inches | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.124MJ | Weight | 4g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332293143 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
