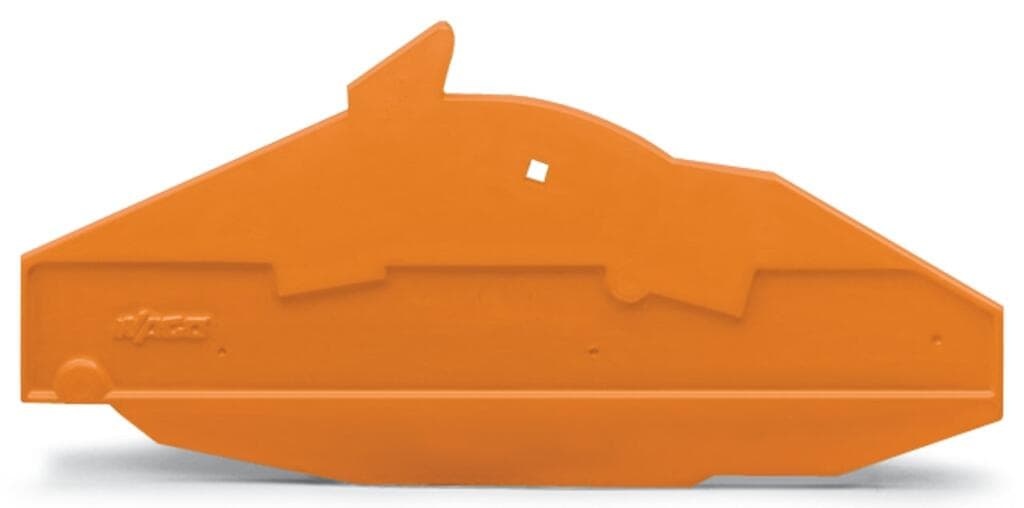

282-365
Product ID:38383
Updated: 2026/7/13
Key Features
- 1Durable Construction: 1.5 mm thick for robust performance.
- 2Orange Color: Easy identification in electrical applications.
- 32-Conductor Compatibility: Designed for 2-conductor longitudinal switching disconnect terminal blocks.
- 4High-Quality Material: Ensures reliable electrical connections.
- 5Rohs Compliant: Meets environmental standards for safe use.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1.5?mm?/ 0.059?inches | Height | 98?mm?/ 3.858?inches |
| Depth | 46.5?mm?/ 1.831?inches | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.088MJ | Weight | 2.9g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?(10)?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4017332813037 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
