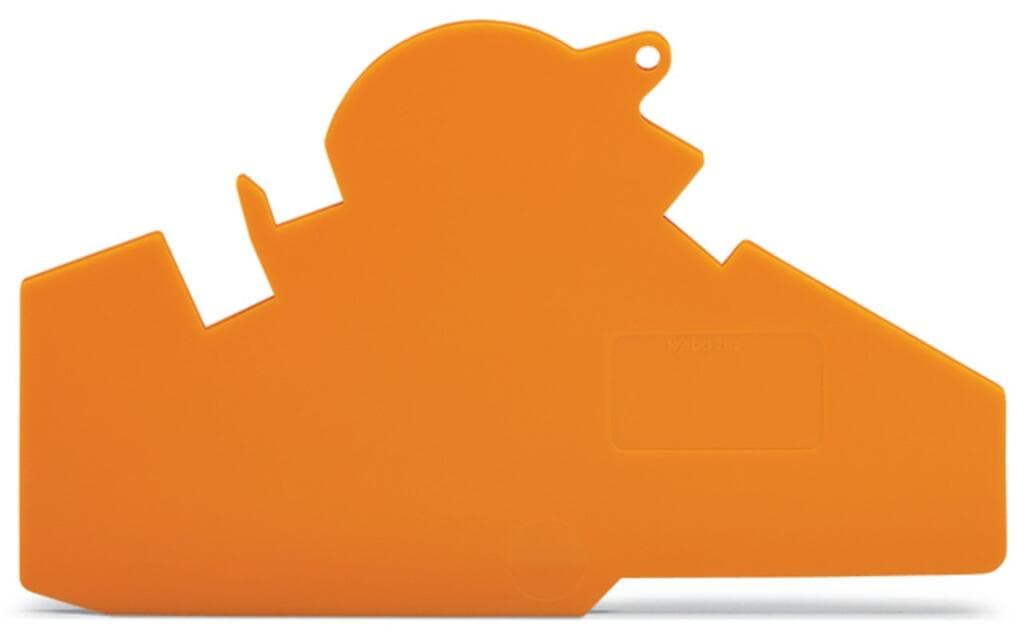

282-392
Product ID:39196
Updated: 2026/7/13
Key Features
- 11.5 mm Thickness for Durability
- 2Lock-Out Seal Option for Enhanced Security
- 3Gray Color for Easy Identification
- 4Fire Load Resistance Up to 0.293 MJ
- 5RoHS Compliant for Environmental Safety
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1.5?mm?/ 0.059?inches | Height | 122?mm?/ 4.803?inches |
| Depth | 71.7?mm?/ 2.823?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.293MJ | Weight | 9.8g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?(10)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332280808 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
