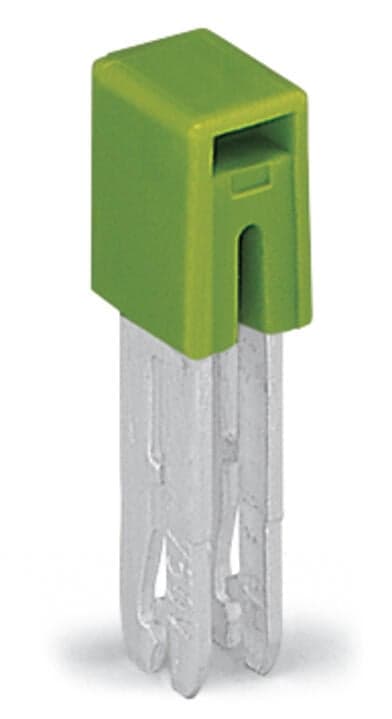

282-422
Product ID:40547
Updated: 2026/7/15
Key Features
- 1High Current Capacity: Rated for 41A nominal current.
- 2Insulated Design: Ensures safe and reliable electrical connections.
- 3Compact Dimensions: 8mm x 8mm x 8mm (W x D x H).
- 4Yellow-Green Color: Easy identification in electrical systems.
- 5RoHS Compliant: Meets environmental product compliance standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 8?mm?/ 0.315?inches | Height | 8?mm?/ 0.315?inches |
| Depth | 24.6 mm / 0.969 inches | Jumper assignment | 1-2 |
| Note (material data) | Information on material specifications can be found here | Color | yellow-green |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.012MJ |
| Weight | 2.7g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918396271 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated current | 41A |
| Rated current (Ex e II) | 35A |
Specifications may be subject to change without notice
