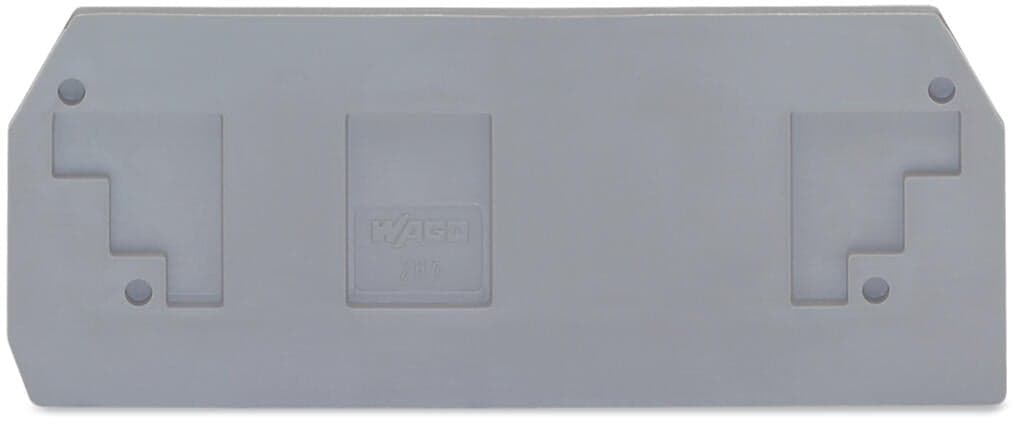

283-325
Product ID:49138
Updated: 2026/7/13
Key Features
- 1Enhanced Electrical Safety: Meets stringent safety standards for Ex e and Ex i applications.
- 2Durable Construction: 2.5 mm thick end and intermediate plate ensures long-lasting performance.
- 3Versatile Compatibility: Compatible with a wide range of conductor sizes from 0.25 to 2.5 mm².
- 4Easy Installation: No special wire preparation required, such as crimps or ferrules.
- 5High-Voltage Capability: Supports up to 800 V, making it suitable for demanding industrial environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2.5?mm?/ 0.098?inches | Height | 94.4?mm?/ 3.717?inches |
| Depth | 36.5 mm / 1.437 inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.185MJ | Weight | 6.1g |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332291705 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
