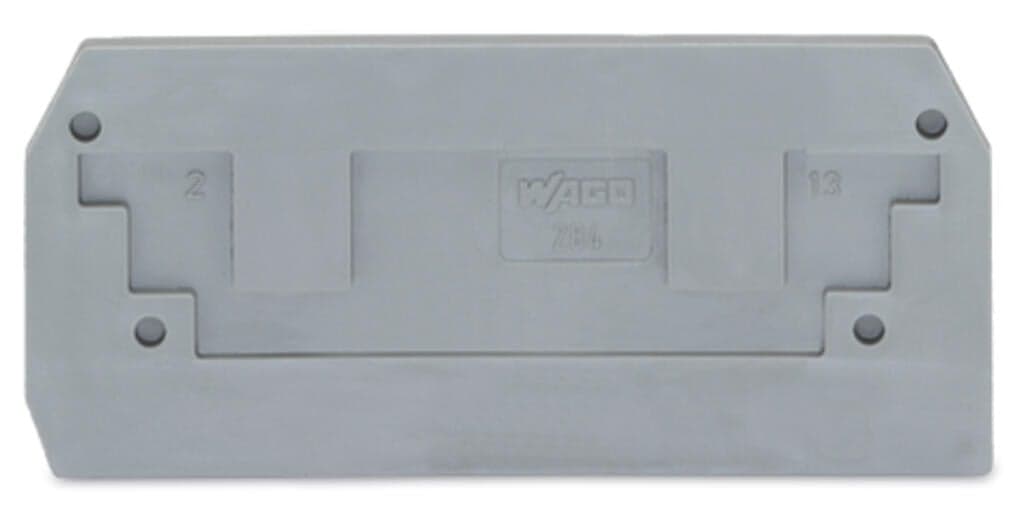

284-325
Product ID:47136
Updated: 2026/7/14
Key Features
- 1Made from high-quality materials for long-lasting performance.
- 2Simple to integrate with rail-mounted terminal blocks, ensuring quick setup.
- 3Suitable for various industrial applications, including automation systems.
- 42.5 mm thick, providing a compact yet robust solution.
- 5RoHS compliant, ensuring environmental safety standards are met.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2.5?mm?/ 0.098?inches | Height | 77.5?mm?/ 3.051?inches |
| Depth | 35?mm?/ 1.378?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.132MJ | Weight | 4.4g |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4017332291613 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
