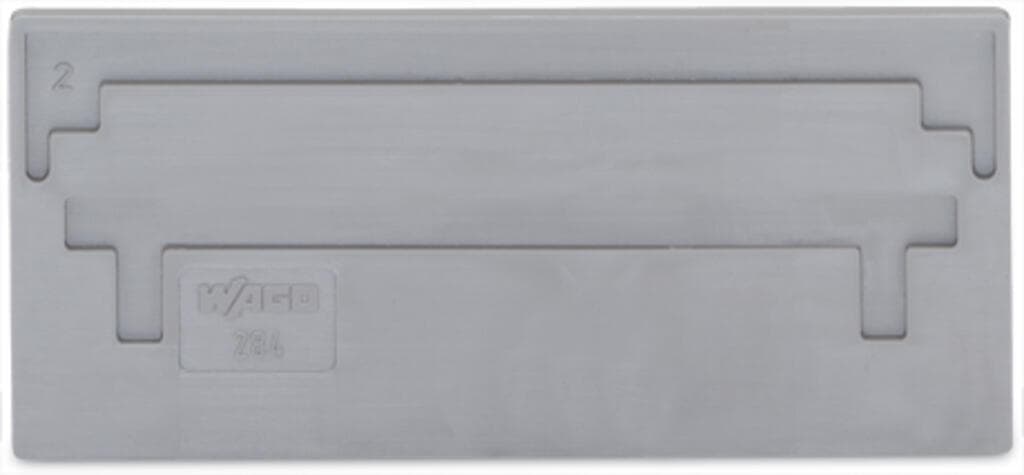

284-326
Product ID:47273
Updated: 2026/7/15
Key Features
- 1No special wire preparation needed, ensuring quick and secure connections.
- 2Supports up to 500V, ideal for various industrial applications.
- 3Space-saving design for efficient use in tight spaces.
- 4Simple and operator-independent, reducing installation time and errors.
- 5Patented stainless steel clamping mechanism for long-lasting performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2?mm?/ 0.079?inches | Height | 76.6?mm?/ 3.016?inches |
| Depth | 33.7?mm?/ 1.327?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.115MJ | Weight | 3.8g |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332291620 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
