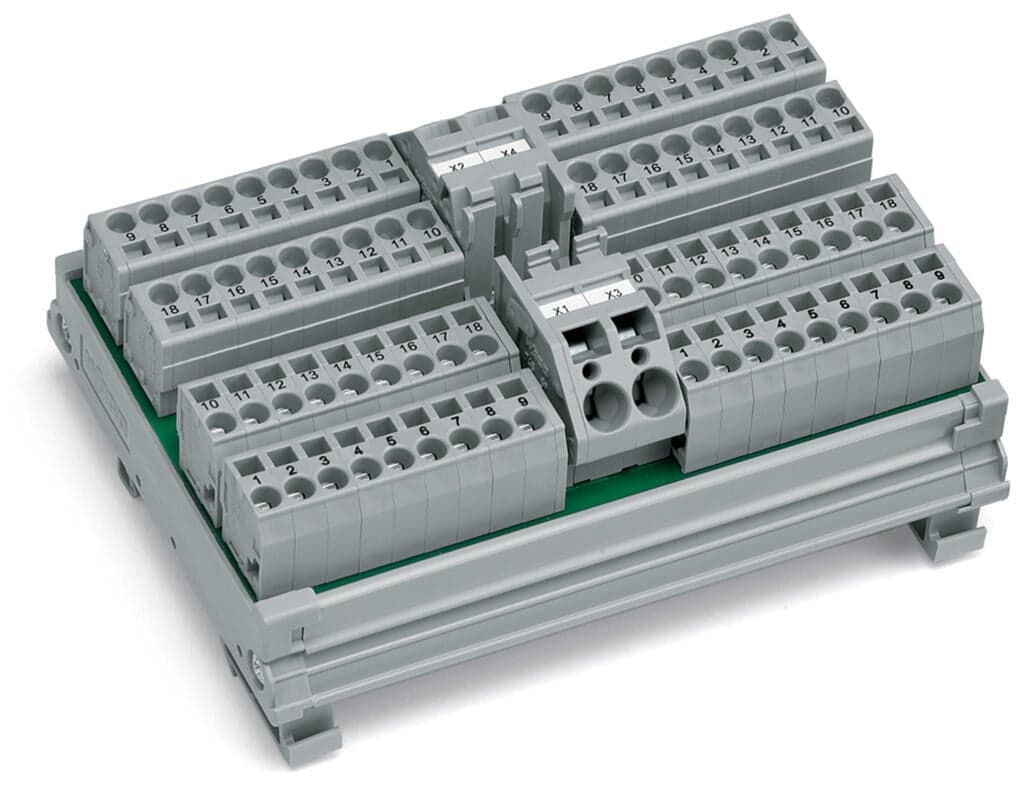

288-837
Product ID:41759
Updated: 2026/7/13
Key Features
- 1Handles up to 4 kV power rating.
- 2Utilizes CAGE CLAMP spring connections for secure and reliable connections.
- 3Designed for easy installation on 35 mm DIN rails.
- 4Offers 19 connection points per potential, enhancing flexibility.
- 5Built with fine-stranded conductors (0.08 to 2.5 mm) and solid conductors (0.2 to 6 mm), ensuring durability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating voltage | ≤?AC/DC?250?V | Current per connection (max.) | 12A |
| Total current per potential (max.) | 32A | Rated voltage | 250V |
| Rated surge voltage | 4kV | Pollution degree | 2 |
| Total number of potentials | 4 | Clamping units | 19 |
| Connection type 1 | Power supply | Mating direction | 45° |
| Connection technology | CAGE CLAMP? | WAGO connector | WAGO 745 Series |
| Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
| Strip length | 11 … 12?mm?/ 0.43 … 0.47?inches | Connection type 2 | Connection points |
| Mating direction 2 | 45° | Connection technology 2 | CAGE CLAMP? |
| WAGO connector 2 | WAGO 739 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Note (conductor cross-section) | 12 AWG: THHN, THWN | Width | 115?mm?/ 4.528?inches |
| Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 45?mm?/ 1.772?inches |
| Mounting type | DIN-35 rail | Housing design | Mounting carrier |
| Fire load | 1.475MJ | Weight | 178.2g |
| Ambient temperature (operation) | -20 … +50 °C | Ambient temperature (storage) | -40 … +80 °C |
| Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-14-11-52 |
| eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
| ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 4?(1)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454287092 |
| Customs tariff number | 8537109150 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
