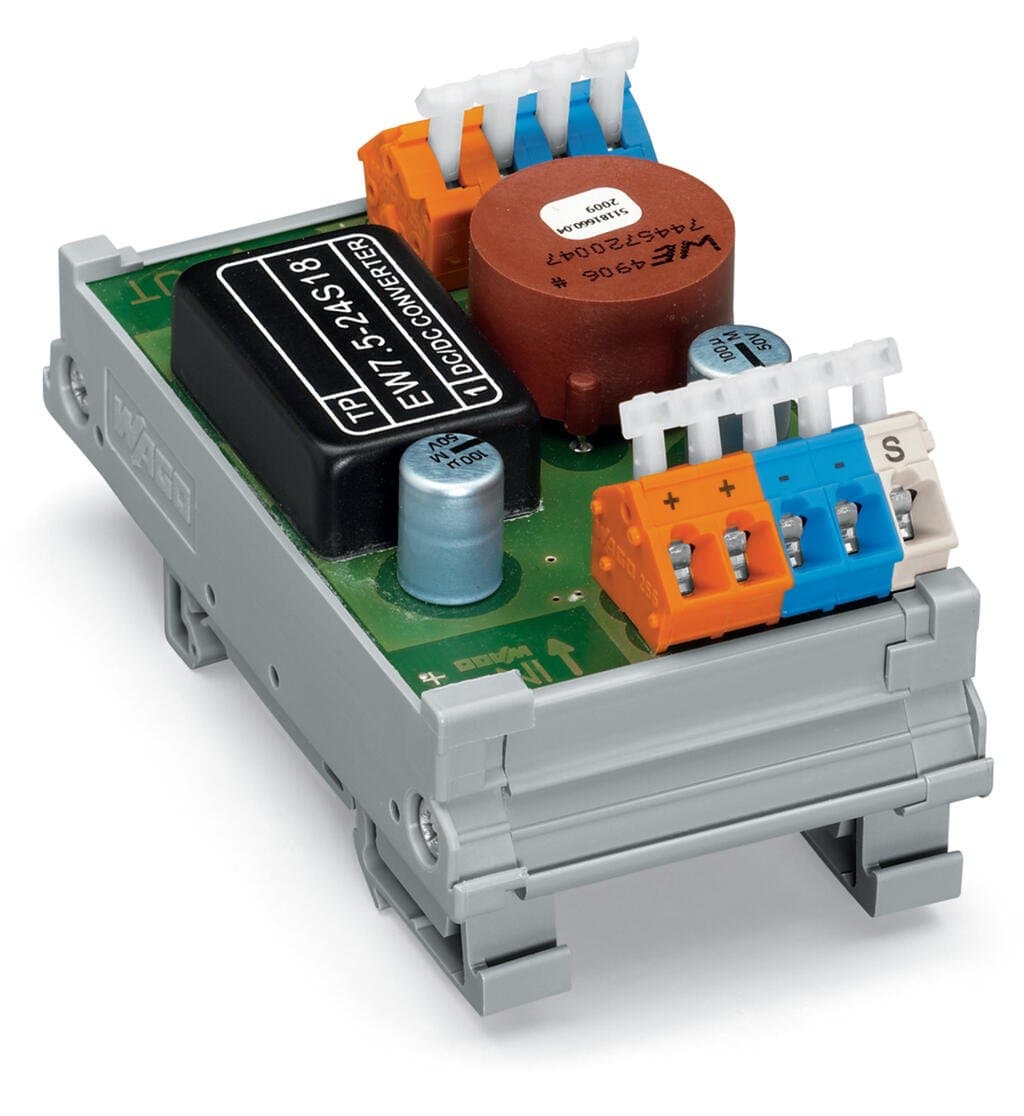

288-895
Product ID:49886
Updated: 2026/4/3
Key Features
- 1Highly Reliable Power Conversion: The WAGO 288-895 DC/DC Converter ensures stable output voltage with ±2% accuracy.
- 2DIN-35 Rail Mounting: Designed for easy installation on DIN-35 rail systems, ideal for industrial control systems.
- 3Compact Design: Measures 85 mm deep and 50 mm wide, making it a space-efficient solution.
- 4CAGE CLAMP Connections: Features CAGE CLAMP spring connections for secure and easy wiring.
- 5Wide Operating Temperature Range: Operates in ambient temperatures from -25°C to +70°C, ensuring durability in various environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | According to the DALI specification, DALI ECGs have only basic isolation from the power supply. The DC/DC converter (288-895) does not offer any additional protective measures against the power supply, i.e., the input voltage cannot be regarded as SELV. Supplying the DC/DC converter (288-895) from a separate power supply unit is recommended and the necessary protections against contact must be observed. | Isolation voltage (AC) | AC 0.9?kV |
| Pollution degree | 2 | Short-circuit-protected | Yes |
| Series operation | No | Connection technology | CAGE CLAMP? |
| WAGO connector | WAGO 256 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
| Note (conductor cross-section) | 12 AWG: THHN, THWN | Width | 50?mm?/ 1.969?inches |
| Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 25?mm?/ 0.984?inches |
| Housing design | Mounting carrier | Mounting type | DIN-35 rail |
| Fire load | 2.499MJ | Weight | 73.4g |
| Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +80 °C |
| Relative humidity | 85% (non-condensing) | Operating altitude (max.) | 2000m |
| Conformity marking | CE | EMC immunity to interference | per EN 61000-6-2* *only in connection with 750-641 DALI/DSI Master Module |
| EMC emission of interference | per EN 61000-6-3*, *only in connection with 750-641 DALI/DSI Master Module | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-04-07-01 | eCl@ss 9.0 | 27-04-07-01 |
| ETIM 9.0 | EC002540 | ETIM 8.0 | EC002540 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 5?(1)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454494889 | Customs tariff number | 8504409510 |
| CAS-No. | 12060-00-3 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | fb5e3d66-f782-444b-854b-ba546e10ff01 | SCIP notification number (Belgium) | 2208cd58-564c-4e97-a74c-4e55763255b9 |
| SCIP notification number (Bulgaria) | 7c317f44-c0ce-4c11-91f5-9081dba30f0a | SCIP notification number (Czech Republic) | 4d65ffc4-b0c7-4df1-84b7-9a92c84bb15c |
| SCIP notification number (Denmark) | 98705a12-fd6e-49a2-b11b-5815d81245b9 | SCIP notification number (Finland) | daf6cef0-4e02-4ea3-9698-3a31f26789bd |
| SCIP notification number (France) | b9ed627c-0f22-4499-9d5e-eadc4cb47a2c | SCIP notification number (Germany) | f235937b-b687-4bbe-8a79-d110d2647b3a |
| SCIP notification number (Hungary) | f7390362-11da-4f40-97f3-b541e3ac557c | SCIP notification number (Italy) | 2b474ae1-208b-4542-ab43-b34c980743f7 |
| SCIP notification number (Netherlands) | 66ed3e96-174d-4597-a2bb-44db39ab4a75 | SCIP notification number (Poland) | 3fc3eb3a-e5fe-4bb7-a915-217091ffc860 |
| SCIP notification number (Romania) | f1a14c28-5f96-41e3-aacc-7738dd9f805b | SCIP notification number (Sweden) | 0f147981-1cb2-4f4c-a901-f59b1403b2db |
| Nominal input voltage [V] | DC?24?V | Input voltage range | DC?19 … 36?V |
| Nominal mains frequency range | 0?Hz | Input current I<sub>i</sub> | ≤?0.53?A (19 VDC);?≤?0.26?A (36 VDC) |
| Nominal output voltage [V] | DC?18?V | Output voltage range | DC?24?V |
| Nominal output current I<sub>o nom</sub> | 0.4?A | Efficiency (typ.) | 82?% |
Specifications may be subject to change without notice
