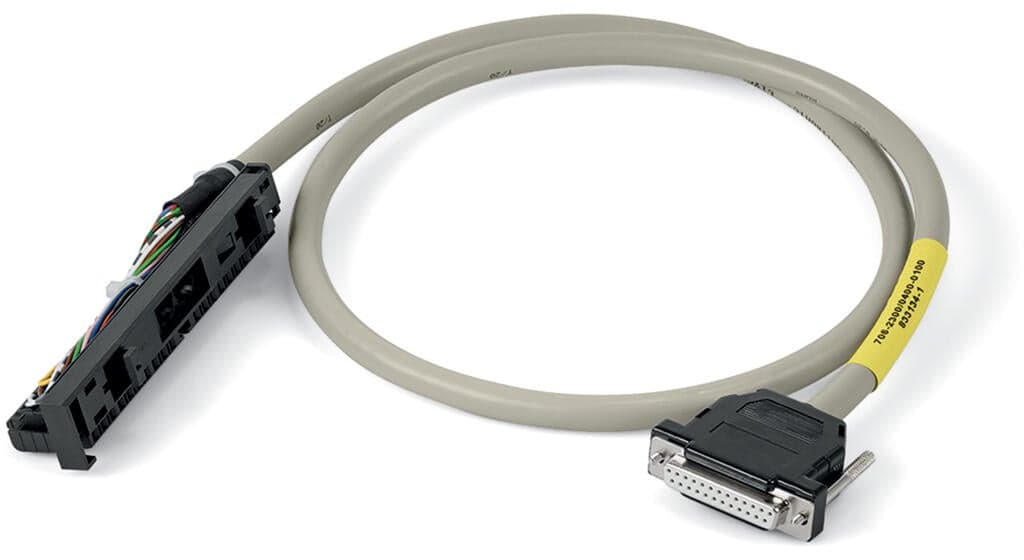

706-2300/500-200
Product ID:44834
Updated: 2026/7/13
Key Features
- 1Compatible with Siemens S7-300 automation systems.
- 2Includes 4 analog output connections for current.
- 3Length: 2 meters with 15-pin D-sub female connectors.
- 4Conductor cross-section: 0.25 mm².
- 5Supports a rated current of 2A per conductor.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | When using more than 10 wires, the maximum current per wire must be reduced to 1?A. | Inputs/outputs | 4 analog outputs; current |
| Operating voltage | ≤?AC/DC?35?V | Current per wire (max.) | 2A |
| Cable type | LiYCY | Color code | per DIN VDE 47100 |
| Cable length | 2m | Weight | 218g |
| Ambient temperature (operation) | -20 … +50 °C | Product Group | 30 (WAGO France) |
| eCl@ss 10.0 | 27-24-22-20 | eCl@ss 9.0 | 27-24-22-20 |
| ETIM 9.0 | EC000237 | ETIM 8.0 | EC000237 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | not specified | Country of origin | FR |
| GTIN | 4045454873981 | Customs tariff number | 85444290900 |
| RoHS Compliance Status | Compliant,No Exemption | Siemens S7-300 | 6ES7 332-5HB01-0AB0 |
| Pluggable connector | D-subminiature female connector | Connection type 1 | System |
| Wire cross-section | 0.25mm2 | Connector 2 | Siemens 6ES7-392-1BJ00-0AA0 |
| Pole number (2) | 15 | Connection type 2 | System |
Specifications may be subject to change without notice
