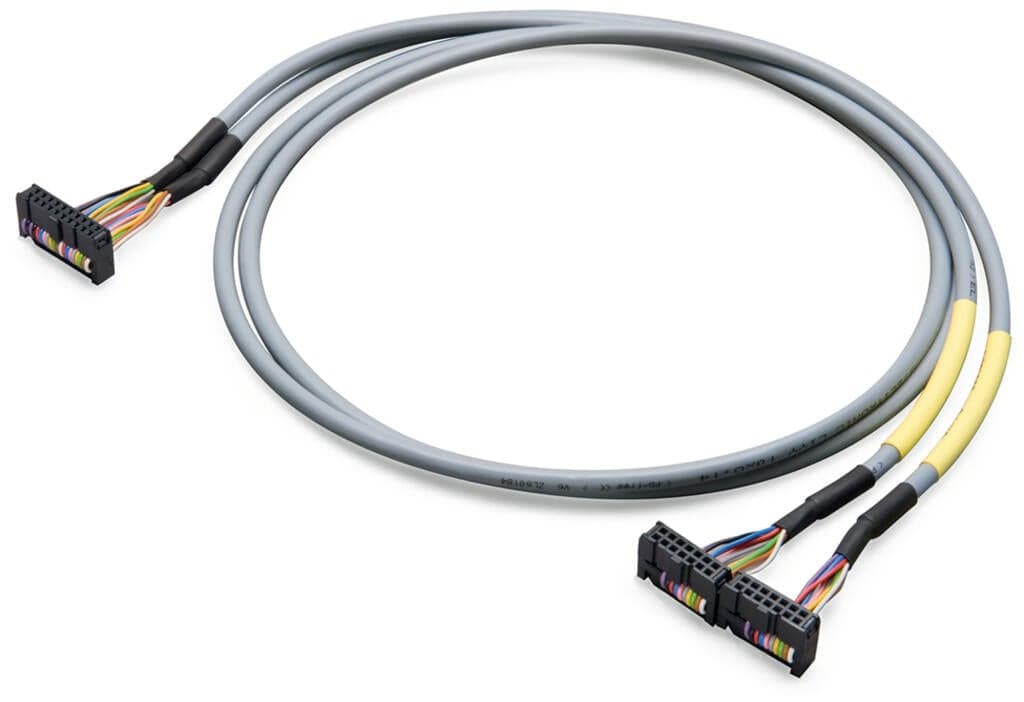

706-7753/304-100
Product ID:47541
Updated: 2026/7/13
Key Features
- 1Highly Reliable Connection: Connects 2 x 8 analog inputs or outputs with precision.
- 2Compact Design: 1-meter length for efficient system wiring.
- 3Compliant Standards: Meets DIN VDE 47100 color coding and LiYY cable type.
- 4Versatile Use: Suitable for WAGO-I/O-SYSTEM, 750 Series applications.
- 5Durable Construction: IP20 protection rating ensures reliable operation in various environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | When using more than 10 wires, the maximum current per wire must be reduced to 0.7?A. | Inputs/outputs | 2 x 8 analog inputs or outputs |
| Operating voltage | ≤?AC/DC?35?V | Current per wire (max.) | 1A |
| Cable type | LiYY | Color code | per DIN VDE 47100 |
| Cable length | 1m | Weight | 97g |
| Ambient temperature (operation) | -20 … +50 °C | Product Group | 30 (WAGO France) |
| eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC000237 | ETIM 8.0 | EC000237 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | FR |
| GTIN | 4050821034209 | Customs tariff number | 8544429090 |
| RoHS Compliance Status | Compliant,No Exemption | Pluggable connector | Pluggable connector per DIN 41651; female connector |
| Pole number 1 | 20 | Connection type 1 | System |
| Wire cross-section | 0.14mm2 | Connector 2 | Pluggable connector per DIN 41651; female connector |
| Pole number (2) | 14 | Connection type 2 | System |
| Connector 3 | Pluggable connector per DIN 41651; female connector | Pole number (3) | 14 |
| Connection type 3 | System |
Specifications may be subject to change without notice
