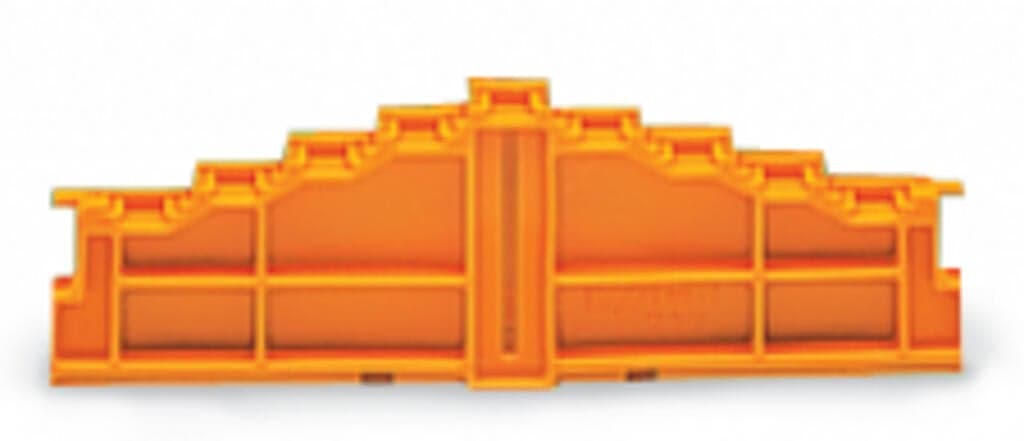

727-205
Product ID:47585
Updated: 2026/7/15
Key Features
- 1High short-time withstand current up to 22,200 A.
- 2Durable CAGE CLAMP connections withstand extreme tests.
- 3Easy push-in termination for solid and ferruled conductors.
- 4Compact design with minimal voltage drop.
- 5Ideal for harsh industrial environments with rugged construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 7.62?mm?/ 0.3?inches | Height | 126?mm?/ 4.961?inches |
| Depth | 44.3?mm?/ 1.744?inches | Marking | 0-1-2-3--3-2-1-0 |
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.215MJ |
| Weight | 14.4g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 12 (Matrix Patch Board) |
| eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
| ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332233545 | Customs tariff number | 8538906000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
