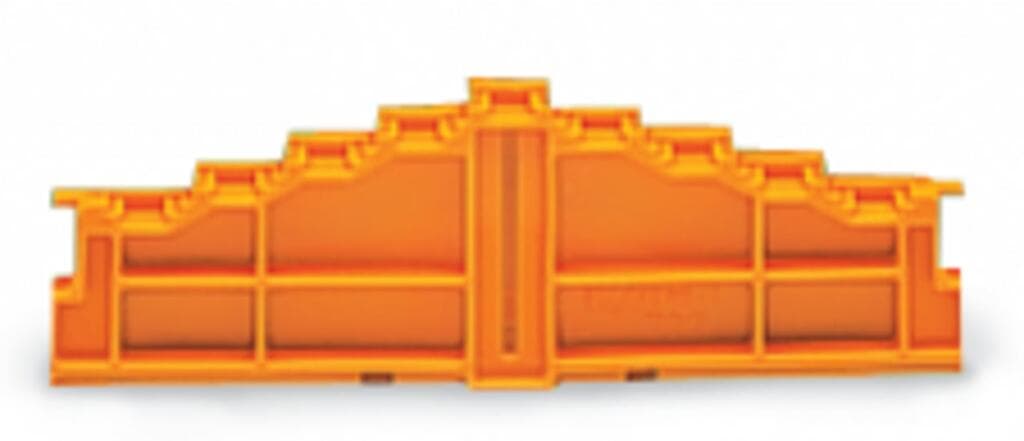

727-206
Product ID:40730
Updated: 2026/7/15
Key Features
- 1Durable Design: Made of high-quality materials for long-lasting performance.
- 2Precise Markings: Features a-b-c-d--d-c-b-a marking for clear identification.
- 3Thick and Rigid: 7.62 mm thick for added strength and stability.
- 4Orange Housing: Easy to spot with its vibrant orange color.
- 5Versatile Use: Suitable for various terminal block applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 7.62?mm?/ 0.3?inches | Height | 126?mm?/ 4.961?inches |
| Depth | 44.3?mm?/ 1.744?inches | Marking | a-b-c-d--d-c-b-a |
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.215MJ |
| Weight | 14.4g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 12 (Matrix Patch Board) |
| eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
| ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332233552 | Customs tariff number | 8538906000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
