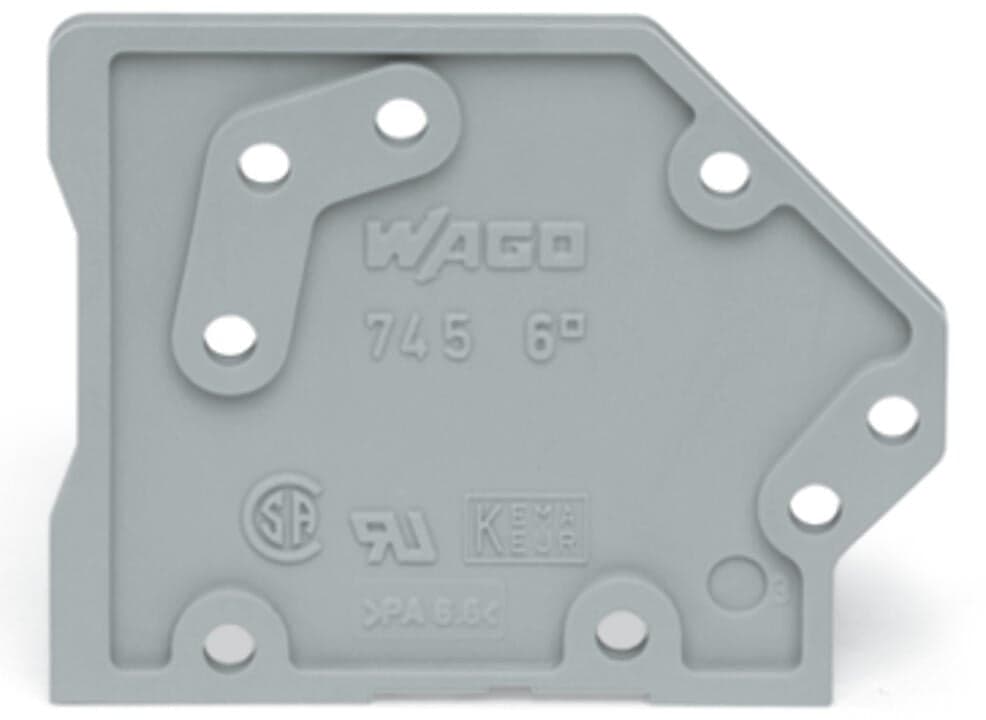

745-300
Product ID:48610
Updated: 2026/7/15
Key Features
- 1Automated Wire Clamping: The WAGO 745-300 uses CAGE CLAMP technology, which automatically adjusts clamping force based on wire size.
- 2Screwless Design: No need for wire preparation like crimps, ferrules, or tinning; simply strip the wire and connect.
- 3Proportional Clamping Force: Larger wires receive higher clamping force, ensuring a secure connection without damage.
- 4Compact and Versatile: Suitable for various wire sizes from 0.08 mm² to 35 mm², making it ideal for diverse applications.
- 5High Retention Force: The uniquely curved current bar and flat clamping face provide a secure connection even under pullout forces.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1.6?mm?/ 0.063?inches | Height | 23?mm?/ 0.906?inches |
| Depth | 29.1?mm?/ 1.146?inches | Mounting type | snap-on type |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.021MJ |
| Weight | 0.7g | Product Group | 4 (Printed Circuit Connectors) |
| eCl@ss 10.0 | 27-44-04-92 | eCl@ss 9.0 | 27-44-04-92 |
| ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 500?(100)?pcs |
| Packaging type | box | Country of origin | CH |
| GTIN | 4017332608152 | Customs tariff number | 8538906000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
