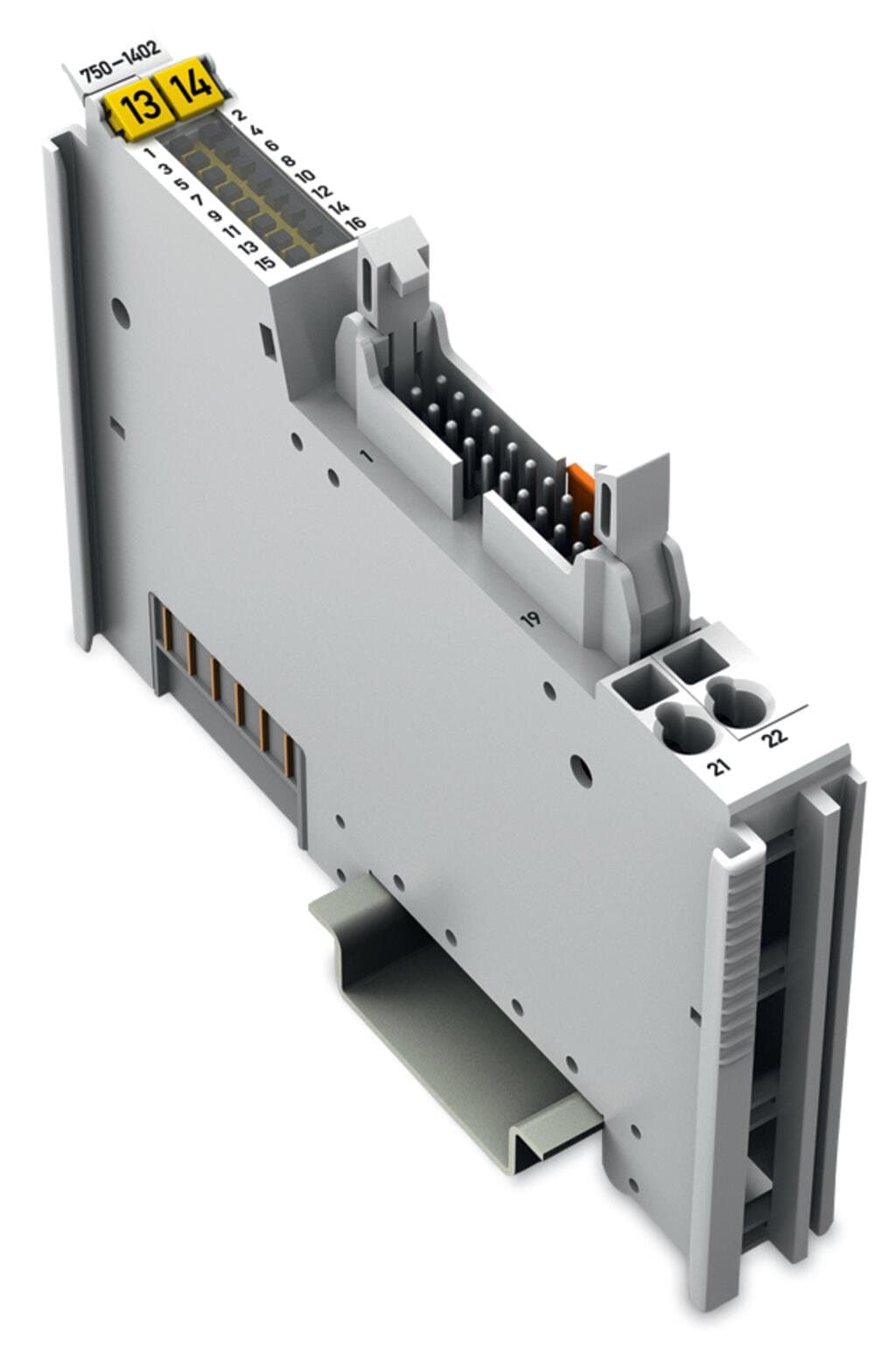

750-1402
Product ID:44302
Updated: 2026/4/3
Key Features
- 116 Channels in Compact Design: The WAGO 750-1402 features 16 digital inputs in a slim 12mm width, perfect for space-constrained installations.
- 2Robust Connectivity: Equipped with 2 x CAGE CLAMP connections and 20 x male connectors, ensuring secure and reliable connections.
- 3High-Performance Switching: Low-side switching with a 3 ms filter, providing fast and accurate signal processing.
- 4Wide Operating Range: Operates in ambient temperatures from 0°C to +55°C, making it suitable for various industrial environments.
- 5IP20 Protection Rating: Offers IP20 protection, ensuring the module is dust-protected and suitable for indoor use.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of digital inputs | 16 | Number of Channels | 16 |
| Signal type | Digital | Signal type (voltage) | 24 VDC |
| Sensor connection | 16 x (1-wire) | Input characteristic | low-side switching |
| Input filter (digital) | 3ms | Input current per channel for signal (0) typ. | 2.3mA |
| Input current per channel for signal (0) min. | -2.1mA | Input current per channel for signal (0) max. | -2.4mA |
| Input current per channel for signal (1) typ. | -0.6mA | Voltage range for signal (0) | (UV- 5 V) … UVDC |
| Voltage range for signal (1) | ?3 VDC … (UV- 15 V) | Input data width (internal) max. | 16bits |
| Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 25mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP?connection) | Isolation | 500 V system/field |
| Indicators | LED (1-16) green: Status DI 1 … DI 16 | Connection technology: inputs / outputs | 1 x Connector per DIN 41651; Male connector (20-pole) (inputs) |
| Connection type 1 | Input | Connection technology: field supply | 2 x CAGE CLAMP? |
| Connection type 2 | Field supply | Solid conductor 2 | 0.08 … 2.5 mm2 / 28 … 14 AWG |
| Fine-stranded conductor 2 | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length 2 | 8 … 9 mm / 0.31 … 0.35 inches |
| Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
| Depth | 74.1 mm / 2.917 inches | Depth from upper-edge of DIN-rail | 66.9 mm / 2.634 inches |
| Mounting type | DIN-35 rail | Pluggable connector | fixed |
| Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.073MJ | Weight | 41.1g |
| Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
| Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
| Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
| eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
| Packaging type | Box | Country of origin | DE |
| Customs tariff number | 85389099990 | CAS-No. | 1303-86-2 |
| REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) | SCIP notification number (Austria) | 5bb9421e-6703-4356-af6e-f075fb6a06a8 |
| SCIP notification number (Belgium) | 9e2a67f7-50d7-4fe6-950a-c86f7c5ef12f | SCIP notification number (Bulgaria) | 66c6029d-5a3c-44b1-af6c-963f4f27ad6b |
| SCIP notification number (Czech Republic) | 98aa44a9-8575-4f7b-a81b-6d2023e875de | SCIP notification number (Denmark) | feb5d862-9cf1-466a-988e-4beb2afda27f |
| SCIP notification number (Finland) | 2a440230-a531-45e5-8542-9967d2a2be03 | SCIP notification number (France) | d3570300-a94e-4449-ae3d-7b567e97d949 |
| SCIP notification number (Germany) | d83b96d9-54d3-43fc-ab9e-b5d516757aa5 | SCIP notification number (Hungary) | 004a0c58-c248-43fc-acf3-d5f6acae17b7 |
| SCIP notification number (Italy) | e102d78a-7374-4c73-b116-96da76a19c3d | SCIP notification number (Netherlands) | d6a286b8-c510-4732-9d47-407483f27499 |
| SCIP notification number (Poland) | 56220c96-9b04-4c3d-ae96-a29dad104a8e | SCIP notification number (Romania) | d54ad6a4-a4c2-4e0b-96ef-bf7ef660960e |
| SCIP notification number (Sweden) | f7370679-7133-410e-93a4-174370f0ccce |
Specifications may be subject to change without notice
