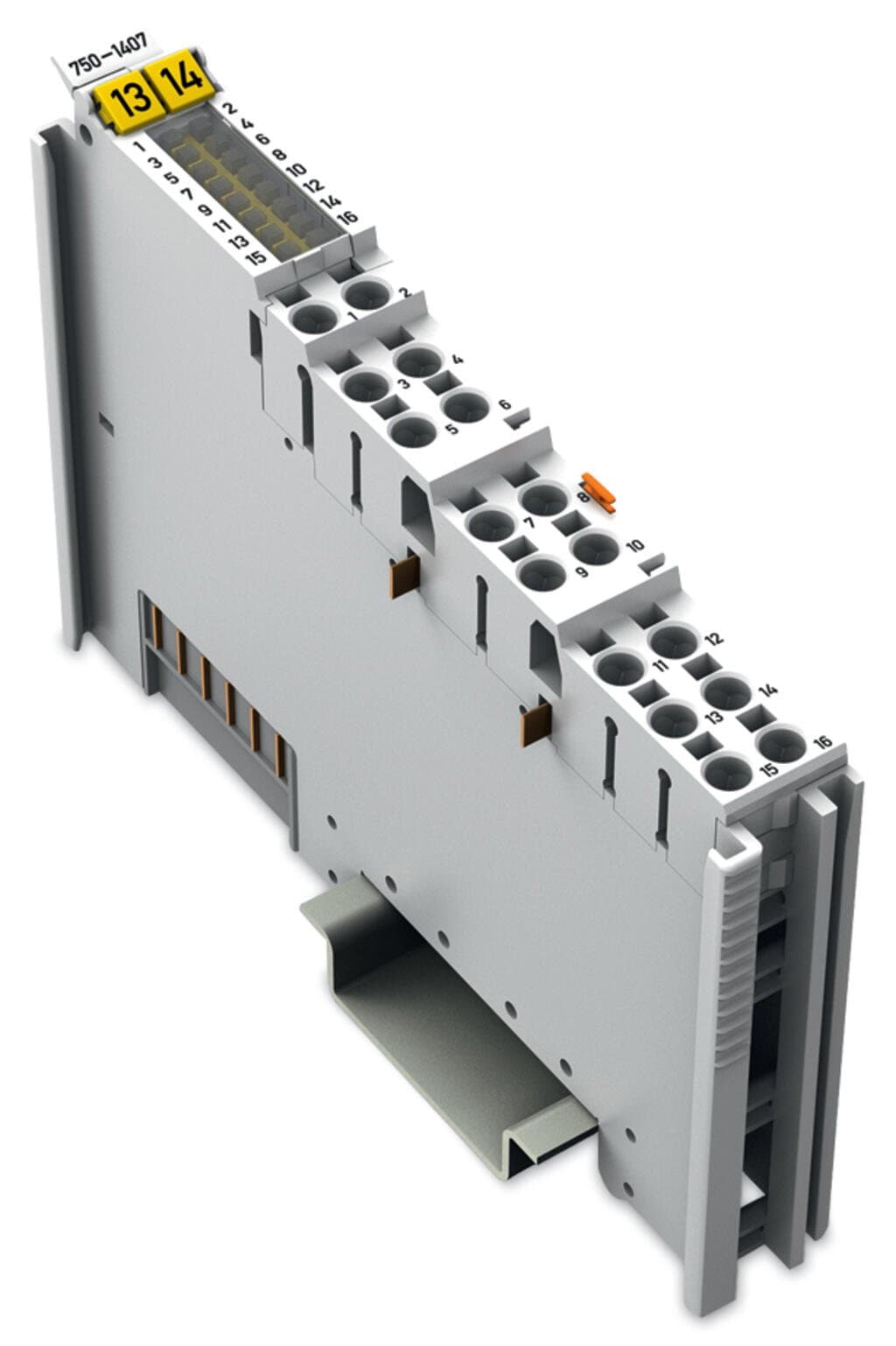

750-1407
Product ID:44274
Updated: 2026/4/3
Key Features
- 116 Channels in a Compact Design: The WAGO 750-1407 features 16 digital inputs in a slim 12mm width, perfect for space-constrained applications.
- 2Low-Side Switching and 3ms Filter: Ensures fast and reliable signal processing with a 3ms filter for noise reduction.
- 3DIN Rail Mounting: Easy installation on DIN-35 rail, suitable for both horizontal and vertical mounting positions.
- 4High Isolation and Protection: Offers 500V system/field isolation and IP20 protection, ensuring safe operation in harsh environments.
- 5Versatile Connectivity: Equipped with 16 x Push-in CAGE CLAMP connections for easy and secure wiring.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of digital inputs | 16 | Number of Channels | 16 |
| Signal type | Digital | Signal type (voltage) | 24 VDC |
| Sensor connection | 16 x (1-wire) | Input characteristic | low-side switching |
| Input filter (digital) | 3ms | Input current per channel for signal (0) typ. | 2.3mA |
| Input current per channel for signal (0) min. | -2.1mA | Input current per channel for signal (0) max. | -2.4mA |
| Input current per channel for signal (1) typ. | -0.6mA | Voltage range for signal (0) | (UV- 5 V) … UVDC |
| Voltage range for signal (1) | ?3 VDC … (UV- 15 V) | Input data width (internal) max. | 16bits |
| Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 25mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500 V system/field |
| Indicators | LED (1-16) green: Status DI 1 … DI 16 | Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
| Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP?(inputs) | Connection type 1 | Input |
| Solid conductor | 0.08 … 1.5 mm2 / 28 … 16 AWG | Fine-stranded conductor | 0.25 … 1.5 mm2 / 22 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches | Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches | Mounting type | DIN-35 rail |
| Pluggable connector | fixed | Color | light gray |
| Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.008MJ |
| Weight | 47g | Conformity marking | CE |
| Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
| Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1 pcs | Packaging type | Box |
| Country of origin | DE | Customs tariff number | 85389099990 |
| RoHS Compliance Status | Compliant,No Exemption |
