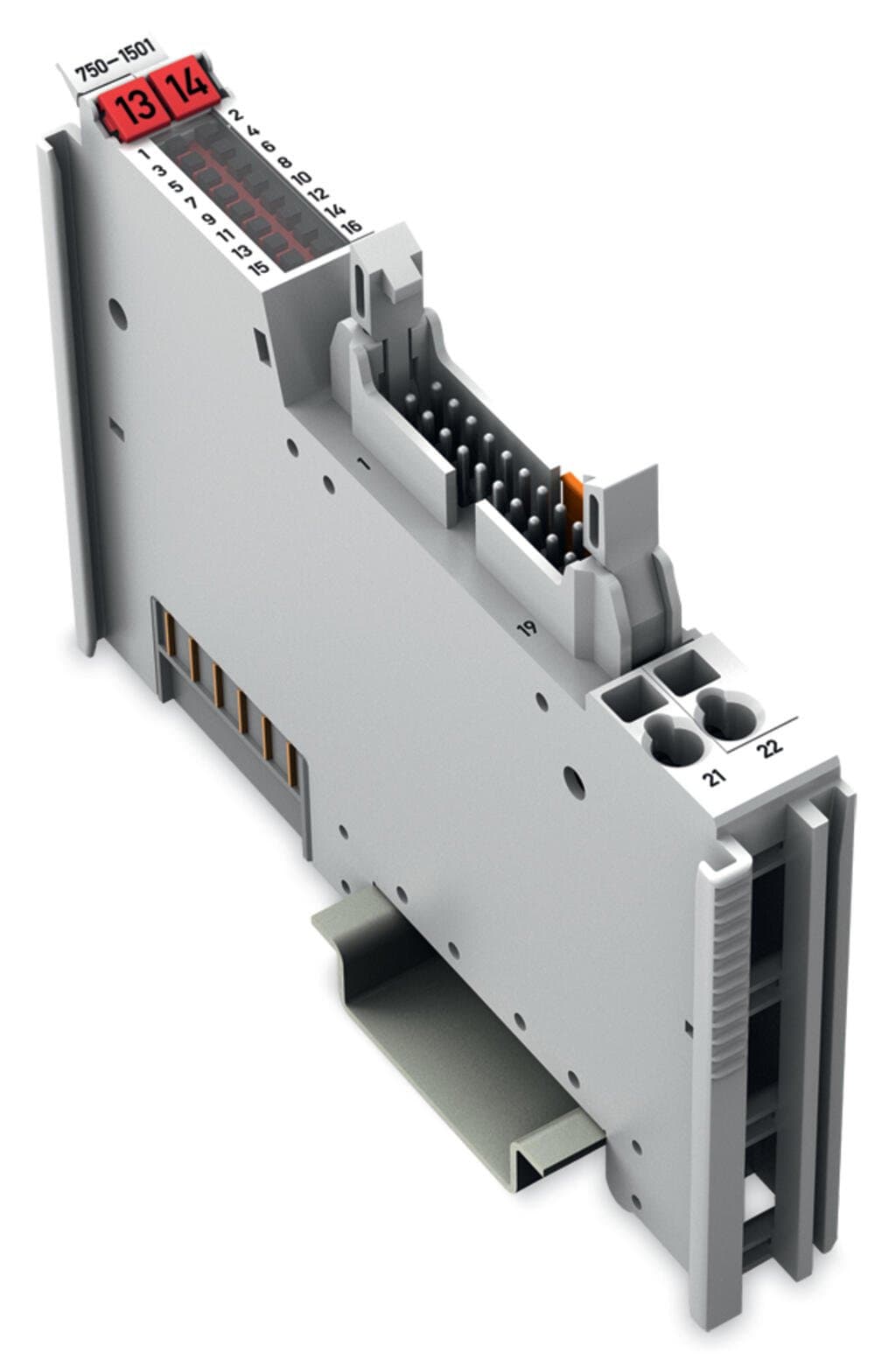

750-1501
Product ID:46653
Updated: 2026/4/3
Key Features
- 1High-quality components ensure durability and reliability in demanding industrial environments.
- 2Advanced connectivity options for seamless integration with various systems and devices.
- 3Compact design for easy installation in tight spaces, reducing overall system footprint.
- 4Scalable architecture supports growing automation needs without compromising performance.
- 5Enhanced data transmission speeds for real-time monitoring and control applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of digital outputs | 16 | Number of Channels | 16 |
| Signal type | Digital | Signal type (voltage) | 24 VDC |
| Actuator connection | 16 x (1-wire) | Output characteristic | low-side switching |
| Output current per channel | 0.5A | Output current | short-circuit-protected |
| Load type | Resistive, inductive, lamp load | Switching frequency (max.) | 1 kHz |
| Output data width (internal) max. | 16bits | Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 40mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP?connection) |
| Current consumption, field supply (module with no external load) | 11mA | Isolation | 500 V system/field |
| Indicators | LED (1-16) green: Status DO 1 … DO 16 | Connection technology: inputs / outputs | 1 x Connector per DIN 41651; Male connector (20-pole) (outputs) |
| Connection type 1 | Output | Connection technology: field supply | 2 x CAGE CLAMP? |
| Connection type 2 | Field supply | Solid conductor 2 | 0.08 … 2.5 mm2 / 28 … 14 AWG |
| Fine-stranded conductor 2 | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length 2 | 8 … 9 mm / 0.31 … 0.35 inches |
| Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
| Depth | 74.1 mm / 2.917 inches | Depth from upper-edge of DIN-rail | 66.9 mm / 2.634 inches |
| Mounting type | DIN-35 rail | Pluggable connector | fixed |
| Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.765MJ | Weight | 42.5g |
| Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
| Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
| Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
| eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
| Packaging type | Box | Country of origin | DE |
| Customs tariff number | 8537109170 | CAS-No. | 1303-86-2 |
| REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) | SCIP notification number (Austria) | e8170084-28a6-48be-9af3-162eefa4e51e |
| SCIP notification number (Belgium) | 0e92c412-da6e-48bc-ab8d-b712b64db290 | SCIP notification number (Bulgaria) | 92c62662-cec8-4747-a949-d70e1ed18402 |
| SCIP notification number (Czech Republic) | 0f7a6bce-3bed-453c-9507-bfd620c43b1d | SCIP notification number (Denmark) | 2275f8e7-8263-42a8-a8d8-c99456351821 |
| SCIP notification number (Finland) | 4c6dbb34-0b66-4718-b960-652a3b65fb47 | SCIP notification number (France) | c0c7bb75-b813-44ff-b951-87c13b78e4aa |
| SCIP notification number (Germany) | 73df3943-be90-4333-af39-f3e06c9160c1 | SCIP notification number (Hungary) | f2e3d7c8-5197-43df-b7a7-8d5d4721da28 |
| SCIP notification number (Italy) | f815728b-88bb-4a3b-b460-9959a37394a6 | SCIP notification number (Netherlands) | 59b05afa-4ca3-42e0-8edd-a92713661d27 |
| SCIP notification number (Poland) | c0cbae92-13cc-492b-9988-de82bf50249e | SCIP notification number (Romania) | 659faa82-60ae-4b2e-bf1f-22ada4a73e57 |
| SCIP notification number (Sweden) | 519c1a7f-90c4-4ed3-bb12-70656d7bbc5e |
Specifications may be subject to change without notice
