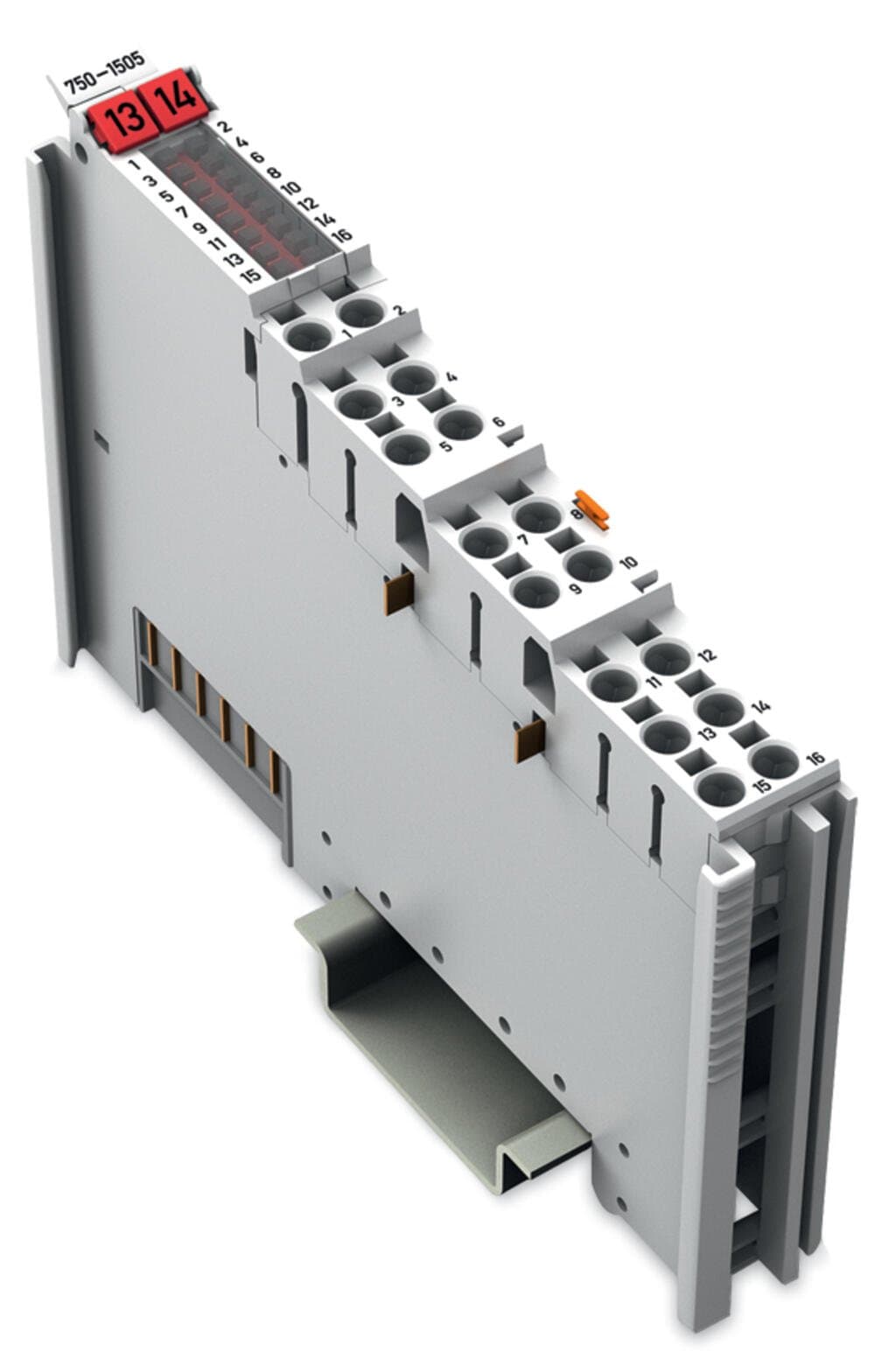

750-1505
Product ID:45128
Updated: 2026/4/3
Key Features
- 116 Channels in Compact Design: The module fits 16 digital outputs in a width of just 12 mm, making it perfect for space-constrained applications.
- 2Robust Connections: Equipped with Push-in CAGE CLAMP connections, solid conductors can be easily connected by pushing them in.
- 3High Isolation: Provides electrical isolation between field and system levels, ensuring safe operation in various environments.
- 4Low-Side Switching: Offers low-side switching with an output current per channel of 0.5 A, suitable for resistive, inductive, and lamp loads.
- 5Durable Construction: Made from polycarbonate and polyamide 6.6, the module is vibration-resistant and suitable for harsh environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of digital outputs | 16 | Number of Channels | 16 |
| Signal type | Digital | Signal type (voltage) | 24 VDC |
| Actuator connection | 16 x (1-wire) | Output characteristic | low-side switching |
| Output current per channel | 0.5A | Output current | short-circuit-protected |
| Load type | Resistive, inductive, lamp load | Switching frequency (max.) | 1 kHz |
| Output data width (internal) max. | 16bits | Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 40mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Current consumption, field supply (module with no external load) | 11mA | Isolation | 500 V system/field |
| Indicators | LED (1-16) green: Status DO 1 … DO 16 | Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
| Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP?(outputs) | Connection type 1 | Output |
| Solid conductor | 0.08 … 1.5 mm2 / 28 … 16 AWG | Fine-stranded conductor | 0.25 … 1.5 mm2 / 22 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches | Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches | Mounting type | DIN-35 rail |
| Pluggable connector | fixed | Color | light gray |
| Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.837MJ |
| Weight | 47.5g | Conformity marking | CE |
| Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
| Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1 pcs | Packaging type | Box |
| Country of origin | DE | Customs tariff number | 8537109170 |
| CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 3226b730-4074-45fa-b8ec-61a974f3842e | SCIP notification number (Belgium) | a8e77bc5-8b31-4ad3-9ff7-1017ca955595 |
| SCIP notification number (Bulgaria) | 74f060e6-30b3-48d9-bde8-1e6d7e89e94d | SCIP notification number (Czech Republic) | 2d97089b-42d1-4ed2-b0bb-35a5d75f8dd0 |
| SCIP notification number (Denmark) | f275f896-16e2-499c-8539-fc7399c726f3 | SCIP notification number (Finland) | eed91a68-6f14-4f17-863b-ed6fb9383281 |
| SCIP notification number (France) | f05291df-d1a6-40b1-99f7-a5c08e3c7484 | SCIP notification number (Germany) | 6fb986c0-7c8d-4ec6-85f3-40590c3ffef0 |
| SCIP notification number (Hungary) | d9f7c1f5-635c-4261-8dfa-bf49a0d09af9 | SCIP notification number (Italy) | 9c880323-c1d3-4850-8e04-98b3ad2a90c0 |
| SCIP notification number (Netherlands) | 37720692-749e-4a75-9095-b12fe5be45f7 | SCIP notification number (Poland) | f60a531e-4e13-41b2-ba63-77784525f561 |
| SCIP notification number (Romania) | c515dece-86d7-427c-9eb6-ef75888cf312 | SCIP notification number (Sweden) | ba7f4e40-3696-478b-b6e5-5f2daf582b74 |
Specifications may be subject to change without notice
