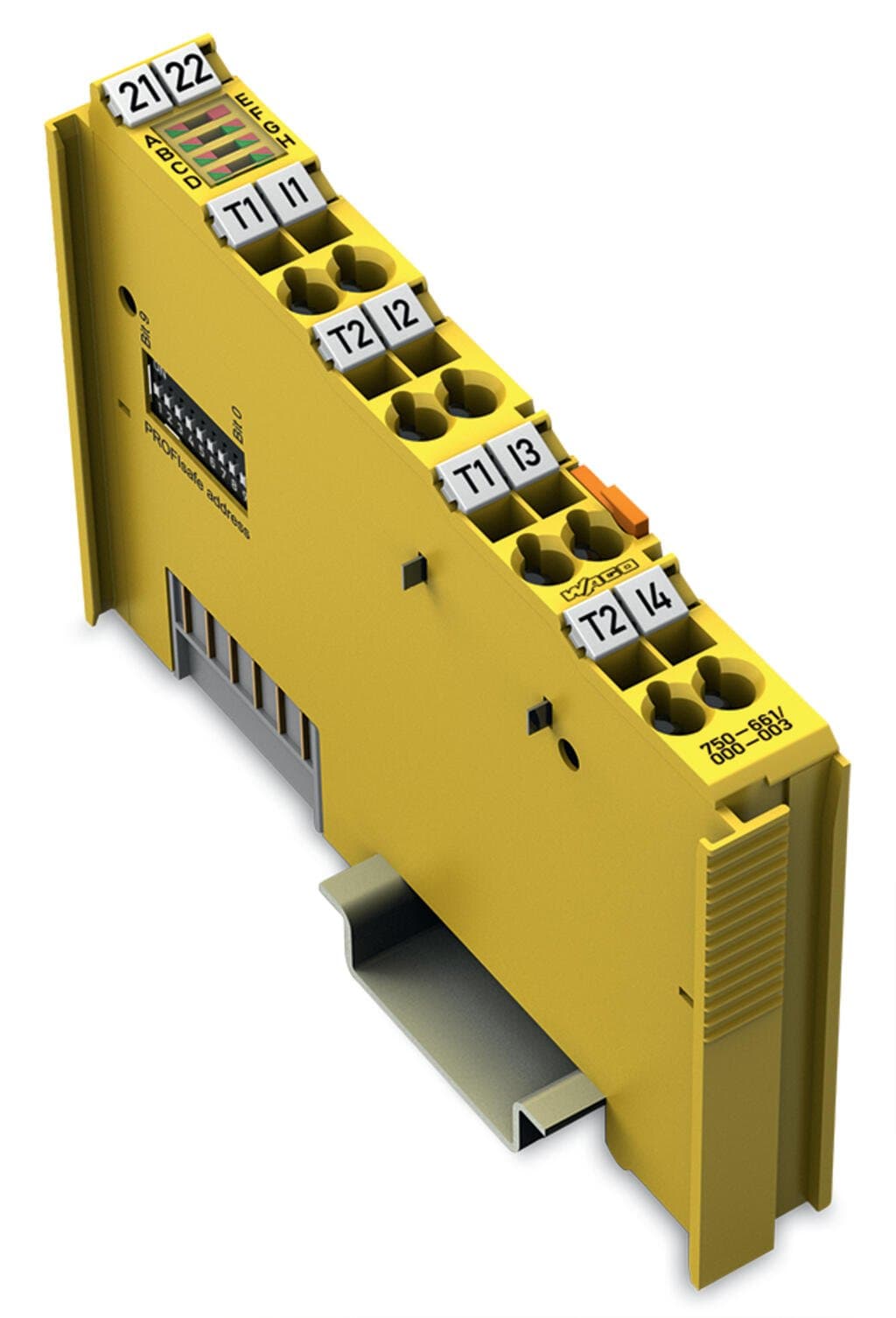

750-661/000-003
Product ID:47440
Updated: 2026/7/13
Key Features
- 1High-quality, precision-engineered components for reliable operation.
- 2Designed for demanding industrial environments with robust construction.
- 3Easy integration with existing systems for seamless automation.
- 4Optimized for reduced downtime and increased productivity.
- 5Compatible with a wide range of industrial control systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Protocols | PROFIsafe V2 | Configuration options | PROFIsafe address adjustable via DIP switch or engineering software |
| Indicators | LED (A-D) green/red: Status/Error I1 … I4; LED (E) red: Group error; LED (F-H) green/red: Diagnostics | Number of Channels | 4 |
| Number of digital inputs | 4 | Signal type | Voltage |
| Signal type (voltage) | 24 VDC | Sensor connection | 4 x (Fail-safe input with test pulse) |
| Input characteristic | Clock sensitive | Input current per channel for signal (1) typ. | 2.2mA |
| Signal frequency (max.) | 50Hz | Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 145mA | Supply voltage (field) | 24 VDC, SELV/PELV (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Current consumption, field supply (module with no external load) | 20mA | Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
| Isolation | 500 V system/field | Achievable safety classes | SIL 3; Category 4, PL e |
| Safety standards | IEC 61508-1 … -7; EN ISO 13849-1; EN 62061 | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
| Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
| Depth | 67.8 mm / 2.669 inches | Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
| Mounting type | DIN-35 rail | Product Group | 15 (I/O System) |
| eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
| ECCN | NO US CLASSIFICATION | Customs tariff number | 8538901000 |
| End of Sale | 2023-06-30 | End of Production | 2023-12-31 |
| End of Delivery | 2024-03-01 | End of Service and Repair | 2026-03-01 |
Specifications may be subject to change without notice
