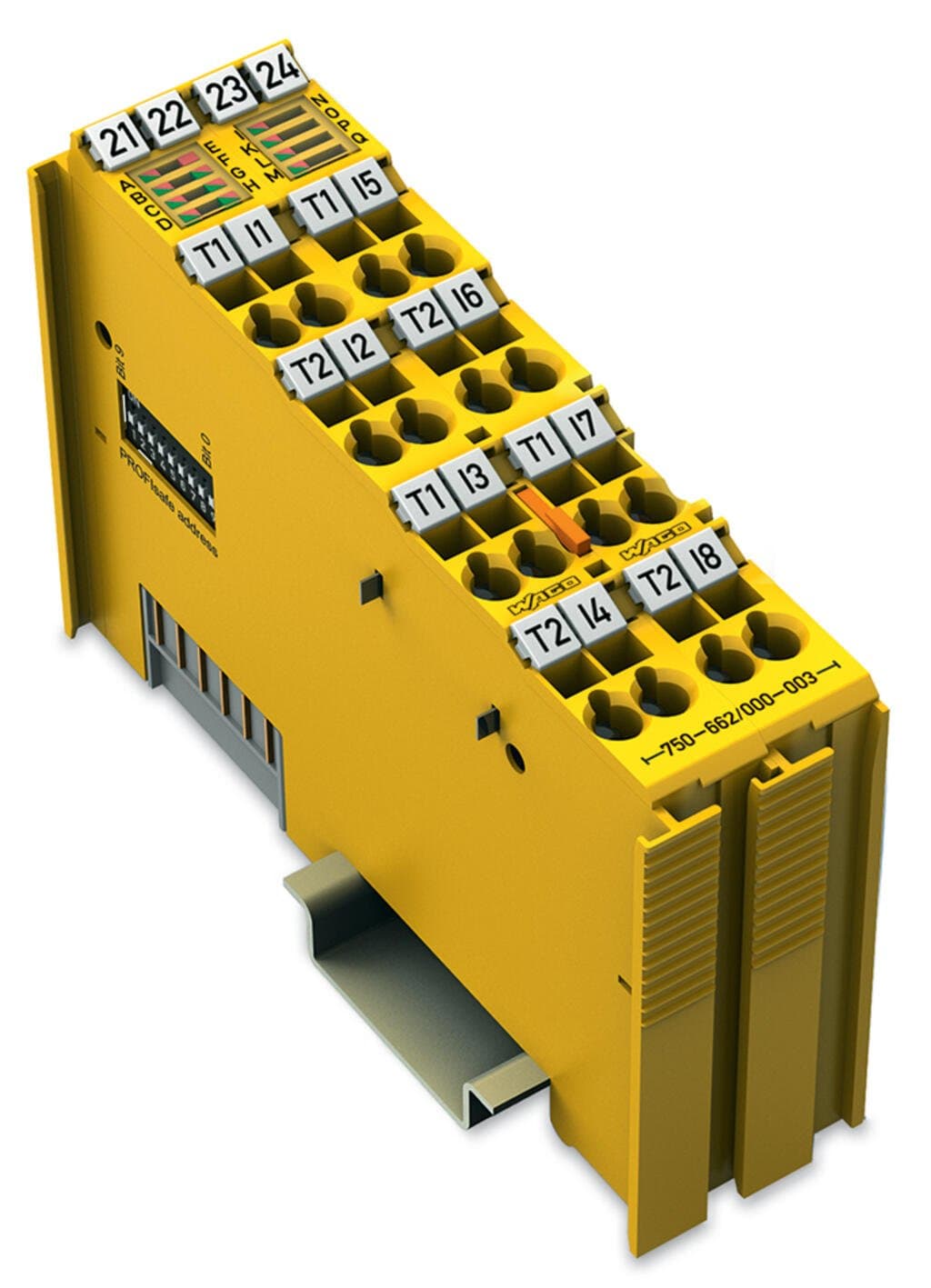

750-662/000-003
Product ID:40893
Updated: 2026/7/13
Key Features
- 1Fail-Safe 8-Channel Digital Input: Ensure reliable operation with 8 fail-safe digital inputs.
- 224 VDC Operation: Compatible with 24 VDC power supply, suitable for various industrial settings.
- 3PROFIsafe V2.0 iPar: Meets high safety standards with PROFIsafe V2.0 iPar technology.
- 4DIN Rail Mounting: Easy installation on DIN rail for compact and efficient use.
- 5IP20 Protection: Offers IP20 protection against dust and water, ensuring durability in harsh environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Protocols | PROFIsafe V2 | Configuration options | PROFIsafe address adjustable via DIP switch or engineering software |
| Indicators | LED (A-D) green/red: Status/Error I1 … I8; LED (E) red: Group error; LED (F-H) green/red: Diagnostics | Number of Channels | 8 |
| Pluggable connector | fixed | Number of digital inputs | 8 |
| Signal type | Voltage | Signal type (voltage) | 24 VDC |
| Sensor connection | 8 x (Fail-safe input with test pulse) | Input characteristic | Clock sensitive |
| Input current per channel for signal (1) typ. | 2.2mA | Signal frequency (max.) | 50Hz |
| Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 148mA |
| Supply voltage (field) | 24 VDC, SELV/PELV (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Current consumption, field supply (module with no external load) | 20mA |
| Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 10A | Isolation | 500 V system/field |
| Achievable safety classes | SIL 3; Category 4, PL e | Safety standards | IEC 61508-1 … -7; EN ISO 13849-1; EN 62061 |
| Connection technology: inputs / outputs | 16 x CAGE CLAMP? | Connection type 1 | Inputs/outputs |
| Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 24 mm / 0.945 inches |
| Height | 100 mm / 3.937 inches | Depth | 67.8 mm / 2.669 inches |
| Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches | Mounting type | DIN-35 rail |
| Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
| Customs tariff number | 8538901000 | End of Sale | 2023-06-30 |
| End of Production | 2023-12-31 | End of Delivery | 2024-03-01 |
| End of Service and Repair | 2026-03-01 |
Specifications may be subject to change without notice
