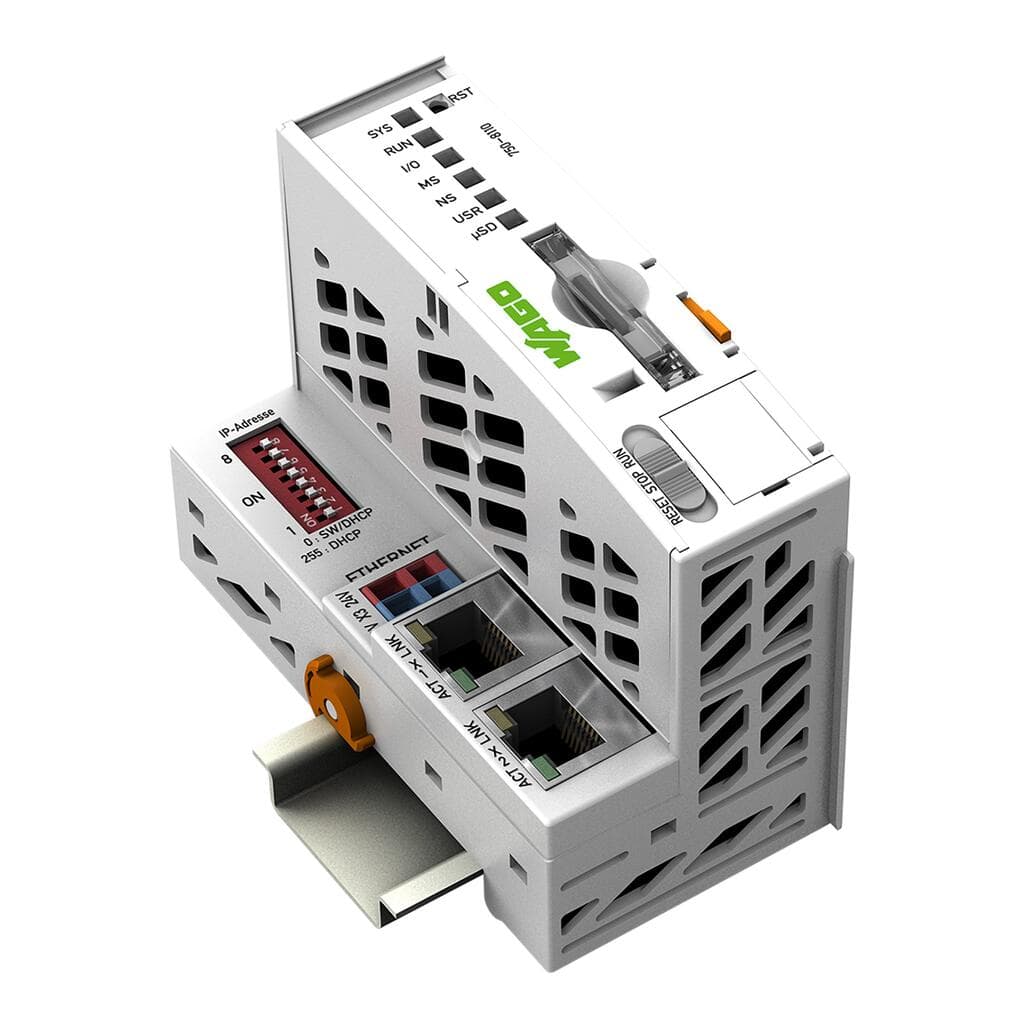

750-8110
Product ID:46254
Updated: 2026/7/14
Key Features
- 1Compact Design: The WAGO 750-8110 is a compact PLC CPU module designed for space-efficient installations.
- 2Dual Ethernet Connectivity: Equipped with two Ethernet ports for seamless communication and integration.
- 3ECO-Friendly: Designed with eco-friendly features to reduce environmental impact.
- 4High Performance: Offers high performance and reliability in industrial automation settings.
- 5Versatile Configuration: Configurable through WAGO-I/O-CHECK software and Codesys 3.5 for various analog input/output applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Communications | Modbus TCP master/slave | ETHERNET protocols | DHCP |
| Visualization | Web-Visu | Operating system | Real-time Linux (with PREEMPT_RT patch) |
| CPU | Cortex A8; 600 MHz | Programming languages per IEC 61131-3 | Instruction List (IL) |
| Programming environment | CODESYS V3.5 | Configuration options | CODESYS V3 |
| Transmission rate | ETHERNET: 10/100 Mbit/s | Transmission medium (communication/fieldbus) | ETHERNET: Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length |
| Main memory (RAM) | 512MB | Internal memory (flash) | 4096MB |
| Non-volatile hardware memory | 128Kbytes | Program memory | 32 MB (Program and data memory (dynamically distributed)) |
| Data memory | 128 MB Program and data memory (dynamically distributed) | Non-volatile software memory | 128.Kbytes |
| Type of memory card | microSD up to 32 GB (all guaranteed properties only valid with WAGO's memory card) | Memory card slot | Push-push mechanism; cover lid (sealable) |
| Number of modules per node (max.) | 250 | Number of modules without a bus extension (max.) | 64 |
| Input and output process image (internal) max. | 1000 words/1000 words | Input and output process image (Modbus?) max. | CODESYS V3: 32000 words/32000 words |
| Indicators | LED (SYS, RUN, I/O, USR) red/green/orange: Status system, program, local data bus, status programmable by user (can be used via CODESYS library) | Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector |
| Input current (typ.) at nominal load (24?V) | 300mA | Total current (system supply) | 700mA |
| Isolation | 500 V system/field | Connection technology: communication/fieldbus | 2 x RJ-45 |
| Connection technology: system supply | 2 x CAGE CLAMP? | Connection type 1 | System supply |
| Solid conductor | 0.08 … 1.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 1.5 mm2 / 28 … 14 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
| Width | 49.5 mm / 1.949 inches | Height | 96.8 mm / 3.811 inches |
| Depth | 71.9 mm / 2.831 inches | Depth from upper-edge of DIN-rail | 64.7 mm / 2.547 inches |
| Weight | 111.9g | Housing material | Polycarbonate; polyamide 6.6 |
| Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Relative humidity (without condensation) | 95% | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Mounting type | DIN-35 rail | Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Fire load | 1.444MJ | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
| Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | ETIM 9.0 | EC000236 |
| ETIM 8.0 | EC000236 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1 pcs | Packaging type | Box |
| Country of origin | DE | GTIN | 4066966459951 |
| Customs tariff number | 85371091990 | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
Specifications may be subject to change without notice
