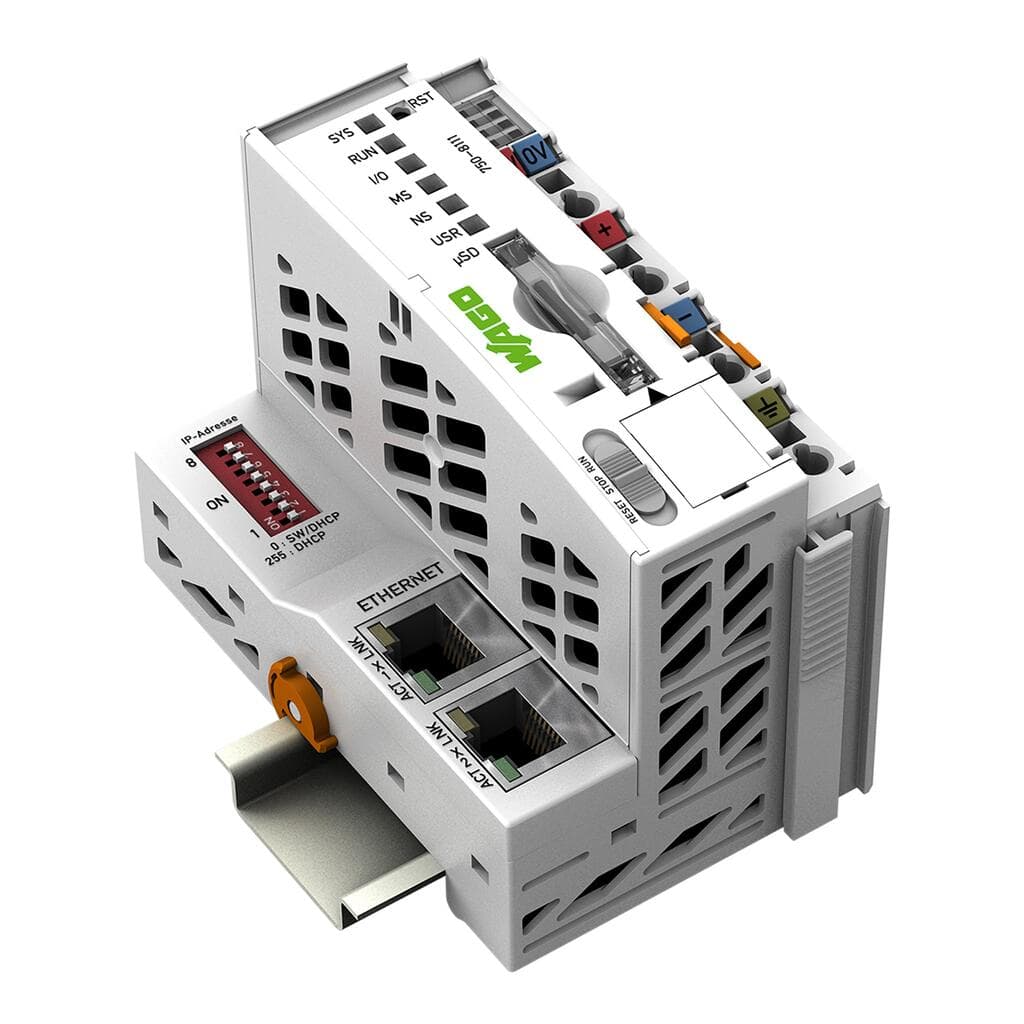

750-8111
Product ID:44702
Updated: 2026/7/13
Key Features
- 1Compact design for easy integration into industrial settings.
- 2Supports two Ethernet interfaces for seamless network connectivity.
- 3Compatible with digital, analog, and specialty I/O modules from the 750/753 Series.
- 4Integrated Webserver for user configuration and real-time status monitoring.
- 5Programmable according to IEC 61131-3 standards for flexible programming options.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Communications | Modbus TCP master/slave | ETHERNET protocols | DHCP |
| Visualization | Web-Visu | Operating system | Real-time Linux (with PREEMPT_RT patch) |
| CPU | Cortex A8; 600 MHz | Programming languages per IEC 61131-3 | Instruction List (IL) |
| Programming environment | CODESYS V3.5 | Configuration options | CODESYS V3 |
| Transmission rate | ETHERNET: 10/100 Mbit/s | Transmission medium (communication/fieldbus) | ETHERNET: Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length |
| Main memory (RAM) | 512MB | Internal memory (flash) | 4096MB |
| Non-volatile hardware memory | 128Kbytes | Program memory | 32 MB (Program and data memory (dynamically distributed)) |
| Data memory | 128 MB Program and data memory (dynamically distributed) | Non-volatile software memory | 128.Kbytes |
| Type of memory card | microSD up to 32 GB (all guaranteed properties only valid with WAGO's memory card) | Memory card slot | Push-push mechanism; cover lid (sealable) |
| Number of modules per node (max.) | 250 | Number of modules without a bus extension (max.) | 64 |
| Input and output process image (internal) max. | 1000 words/1000 words | Input and output process image (Modbus?) max. | CODESYS V3: 32000 words/32000 words |
| Indicators | LED (SYS, RUN, I/O, USR) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status of system power supply, field supply | Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP?connection) |
| Input current (typ.) at nominal load (24?V) | 550mA | Total current (system supply) | 1,700mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts | Current carrying capacity (power jumper contacts) | 10A |
| Number of outgoing power jumper contacts | 3 | Isolation | 500 V system/field |
| Connection technology: communication/fieldbus | Modbus (TCP, UDP): 2 x RJ-45 | Connection technology: system supply | 2 x CAGE CLAMP? |
| Connection technology: field supply | 6 x CAGE CLAMP? | Connection type 1 | System/field supply |
| Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
| Width | 61.5 mm / 2.421 inches | Height | 100 mm / 3.937 inches |
| Depth | 71.9 mm / 2.831 inches | Depth from upper-edge of DIN-rail | 64.7 mm / 2.547 inches |
| Weight | 154.3g | Housing material | Polycarbonate; polyamide 6.6 |
| Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Relative humidity (without condensation) | 95% | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Mounting type | DIN-35 rail | Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Fire load | 2.466MJ | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
| Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | ETIM 9.0 | EC000236 |
| ETIM 8.0 | EC000236 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1 pcs | Packaging type | Box |
| Country of origin | DE | GTIN | 4066966460858 |
| Customs tariff number | 85371091990 | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
Specifications may be subject to change without notice
