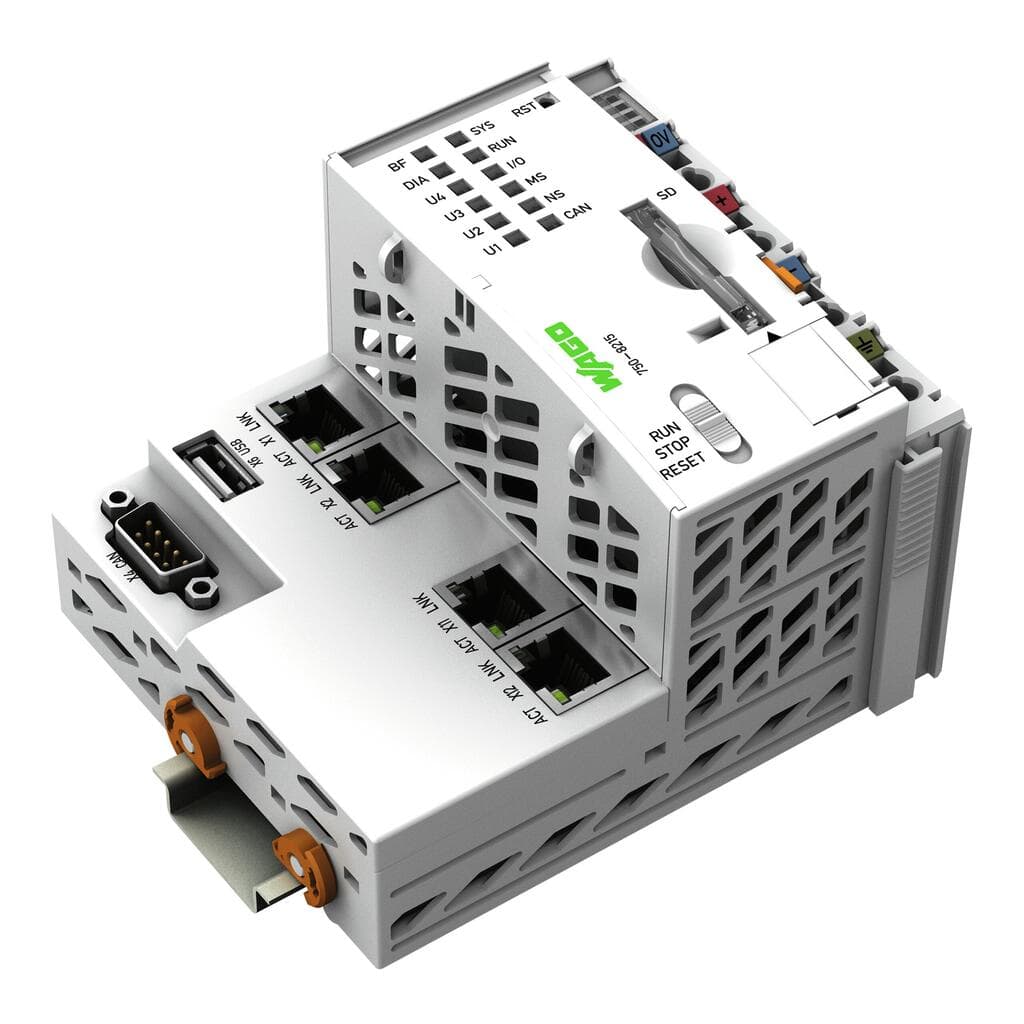

750-8215
Product ID:49688
Updated: 2026/7/13
Key Features
- 1Advanced Automation Solutions: The WAGO 750-8215 PLC controller is designed for complex industrial automation tasks, ensuring high performance and reliability.
- 2Robust Communication Interfaces: Equipped with 4 Ethernet ports, CANopen, and USB-A, this controller supports multiple communication protocols for seamless integration.
- 3Easy Programming with CODESYS 3.5: Utilize the powerful CODESYS 3.5 development software to program logic, visualize data, and manage network communications efficiently.
- 4High Cybersecurity Standards: Features SSL, SSH, OpenVPN, and firewall for enhanced cybersecurity in industrial environments.
- 5Compact yet Powerful Design: Despite its compact size, the controller boasts a 1 GHz Cortex A8 processor and 512 MB RAM for fast operating speeds and large program/data memory.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Communications | PROFINET RT | ETHERNET protocols | DHCP |
| Telecontrol protocols | IEC 60870 (additional license as slave or master) | Visualization | Web-Visu |
| Operating system | Real-time Linux (with PREEMPT_RT patch) | CPU | Cortex A8; 1 GHz |
| Programming languages per IEC 61131-3 | Instruction List (IL) | Programming environment | CODESYS V3.5, Firmware Release 23 or higher |
| Configuration options | CODESYS V3 | Transmission rate | ETHERNET:?10/100?Mbit/s |
| Transmission medium (communication/fieldbus) | ETHERNET:?Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length | Main memory (RAM) | 512MB |
| Internal memory (flash) | 4096MB | Non-volatile hardware memory | 128Kbytes |
| Program memory | 32?MB | Data memory | 128?MB |
| Non-volatile software memory | 128.Kbytes | Type of memory card | SD card |
| Memory card slot | Push-push mechanism; Cover lid (sealable) | Number of modules per node (max.) | 250 |
| Number of modules without a bus extension (max.) | 64 | Input and output process image (internal) max. | 1000?words/1000?words |
| Input and output process image (Modbus?) max. | CODESYS V3: 32000?words/32000?words | Input and output process image (CAN) max. | 2000?words/2000?words |
| Device-specific | PROFINET IO features: PROFINET IO V2.3; Media redundancy (MRP); Shared device | Indicators | LED (SYS; RUN; I/O; CAN; BF; DIA; U1 … U4) red/green/orange: status system; program; local bus; CANopen; PROFINET; PROFINET diagnostics; status programmable by user (can be used via CODESYS library); LED (A, B) green: system power supply status; field supply |
| Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) | Input current (typ.) at nominal load (24?V) | 550mA |
| Total current (system supply) | 1,700mA | Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts |
| Current carrying capacity (power jumper contacts) | 10A | Number of outgoing power jumper contacts | 3 |
| Isolation | 500?V system/field | Connection technology: communication/fieldbus | PROFINET:?2 x RJ-45;?CANopen:?1 x D-sub 9 plug;?Modbus (TCP, UDP):?2 x RJ-45 |
| Connection technology: system supply | 2 x CAGE CLAMP? | Connection technology: field supply | 6 x CAGE CLAMP? |
| Connection type 1 | System/field supply | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Connection technology: device configuration | 1 x Male connector; 4-pole | Width | 112?mm?/ 4.409?inches |
| Height | 100?mm?/ 3.937?inches | Depth | 71.9?mm?/ 2.831?inches |
| Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches | Weight | 255.6g |
| Housing material | Polycarbonate; polyamide 6.6 | Conformity marking | CE |
| Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
| Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Relative humidity (without condensation) | 95% |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Mounting type | DIN-35 rail |
| Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Fire load | 2.872MJ |
| Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
| ETIM 9.0 | EC000236 | ETIM 8.0 | EC000236 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143852883 | Customs tariff number | 8537109170 |
| CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 9cbbb60f-a997-4e48-8422-92c84b816798 | SCIP notification number (Belgium) | 0723ad08-a23e-422d-9b39-a535e2f35271 |
| SCIP notification number (Bulgaria) | 99ffcbe3-fdd3-47db-939d-4033537728af | SCIP notification number (Czech Republic) | 8efe0eab-773f-4446-b171-690ce0026a98 |
| SCIP notification number (Denmark) | f310c66d-438a-4ea8-86e7-b7f4920b5688 | SCIP notification number (Finland) | 3ac0680c-25bc-4547-bd1a-0318dde97082 |
| SCIP notification number (France) | e54bbea0-1fea-4692-9767-400889699a1f | SCIP notification number (Germany) | a033c912-16a4-4ba3-914a-8f8321736161 |
| SCIP notification number (Hungary) | b663a357-db44-4bee-baca-14984b2bee65 | SCIP notification number (Italy) | 759a221d-dea0-43c6-ad06-f662ab81be42 |
| SCIP notification number (Netherlands) | c1dd4c88-d88f-4993-8c62-935581733bb5 | SCIP notification number (Poland) | 6417fd7d-643c-4642-9f93-b1246f595c09 |
| SCIP notification number (Romania) | 3538ac82-0215-468f-8c99-3e33cab43202 | SCIP notification number (Sweden) | 24816a0a-be2b-4893-9b7b-3d747f239fe5 |
Specifications may be subject to change without notice
