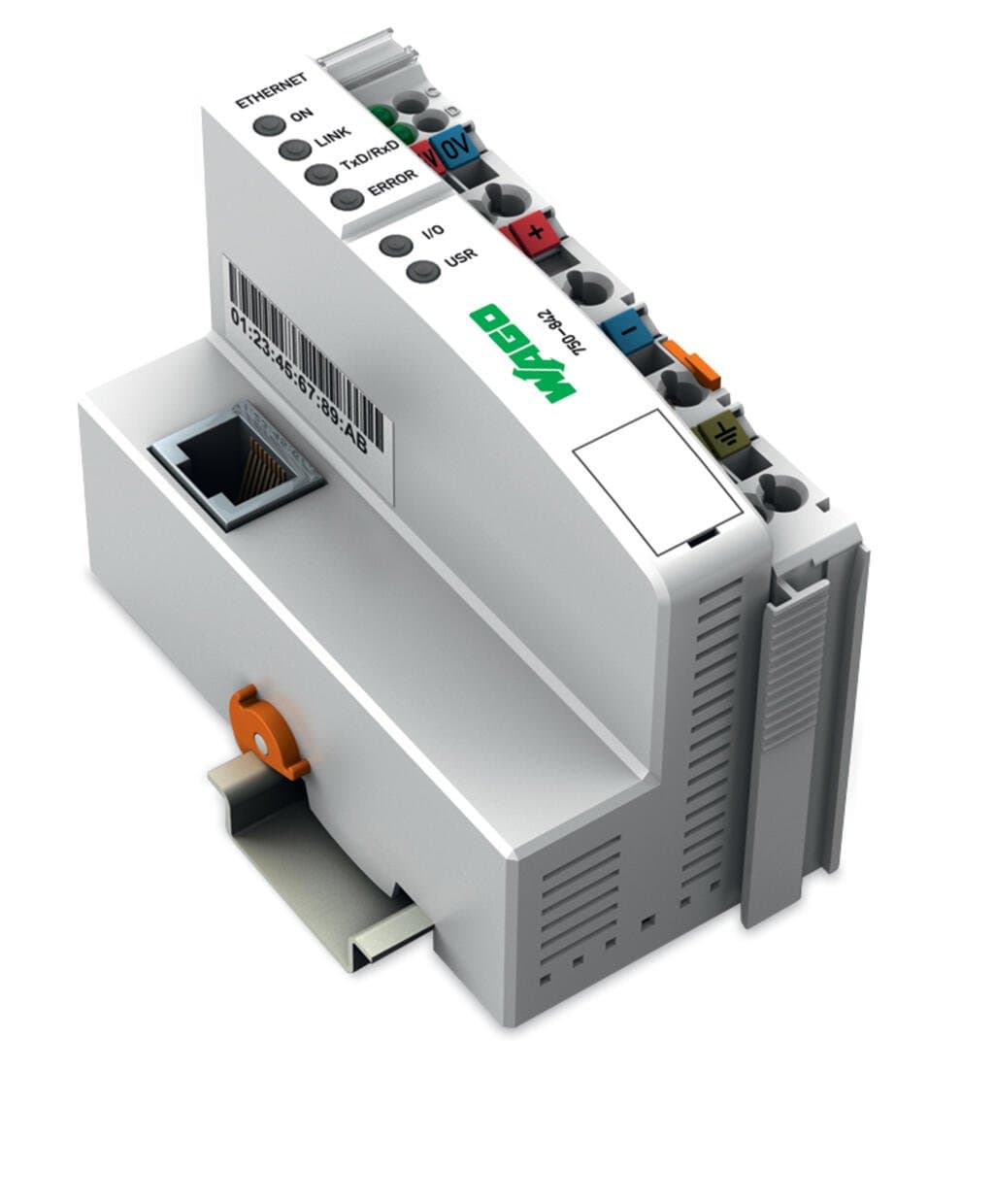

750-842
Product ID:48337
Updated: 2026/7/13
Key Features
- 1Modbus TCP/UDP and Ethernet Communication: Seamlessly integrates with industrial networks using Modbus TCP/UDP and Ethernet protocols.
- 2High Memory Capacity: Equipped with 64 kByte data memory for efficient data processing.
- 3Versatile Programming: Supports multiple programming languages including Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), and Sequential Function Chart (SFC).
- 4Durable Construction: Built with polycarbonate and polyamide 6.6 housing, ensuring robustness in harsh environments.
- 5Wide Operating Temperature Range: Operates between 0°C and +55°C, making it suitable for various industrial settings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Communications | Modbus (TCP, UDP) | ETHERNET protocols | HTTP |
| Visualization | none | CPU | 16 bits |
| Programming languages per IEC 61131-3 | Instruction List (IL) | Programming environment | WAGO-I/O-PROV2.3 (based on CODESYS V2.3) |
| Configuration options | WAGO-I/O-CHECK | Cycle time | < 3 ms for 1000 bit instructions/ 256 digital I/O |
| Transmission rate | 10?Mbit/s | Bus segment length (max.) | 100?m |
| Transmission medium (communication/fieldbus) | Twisted Pair S-UTP; 100 Ω; Cat. 5 | Program memory | 128?KB |
| Data memory | 64?KB | Non-volatile software memory | 8Kbytes |
| Memory for fieldbus input variables (max.) | 512Byte | Memory for fieldbus output variables (max.) | 512Byte |
| Number of modules per node (max.) | 64 | Number of modules without a bus extension (max.) | 64 |
| Input and output process image (fieldbus) max. | 512?bytes/512?bytes | Indicators | LED (ON, LINK, TxD/RxD) green: Fieldbus initialization, network connection, data exchange; LED (ERROR) red: Fieldbus error; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply |
| Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) | Input current (typ.) at nominal load (24?V) | 500mA |
| Power supply efficiency (typ.) at nominal load (24 V) | 87% | Current consumption (5 V system supply) | 200mA |
| Total current (system supply) | 1,800mA | Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts |
| Current carrying capacity (power jumper contacts) | 10A | Number of outgoing power jumper contacts | 3 |
| Isolation | 500?V system/field | Connection technology: communication/fieldbus | Modbus (TCP, UDP):?1 x RJ-45 |
| Connection technology: system supply | 2 x CAGE CLAMP? | Connection technology: field supply | 6 x CAGE CLAMP? |
| Connection type 1 | System/field supply | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Connection technology: device configuration | 1 x Male connector; 4-pole | Width | 50.5?mm?/ 1.988?inches |
| Height | 100?mm?/ 3.937?inches | Depth | 71.1?mm?/ 2.799?inches |
| Depth from upper-edge of DIN-rail | 63.9?mm?/ 2.516?inches | Weight | 179g |
| Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
| Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 | Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
| Relative humidity (without condensation) | 95% | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Mounting type | DIN-35 rail | Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Fire load | 3.435MJ | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
| Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
| eCl@ss 10.0 | 27-24-26-07 | eCl@ss 9.0 | 27-24-26-07 |
| ETIM 9.0 | EC000236 | ETIM 8.0 | EC000236 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454527198 | Customs tariff number | 8537109160 |
| CAS-No. | 12060-00-3 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | f1c2772b-f8cc-4ac3-9b16-0c7bbfb407ba | SCIP notification number (Belgium) | 0a2146d9-0dfe-4b81-b012-e82db9bc2f72 |
| SCIP notification number (Bulgaria) | 077fe39f-65c1-44be-b3e2-aa6b44a4e4cf | SCIP notification number (Czech Republic) | 56bb7842-a37c-487d-82c9-551956c45f82 |
| SCIP notification number (Denmark) | 473abf6a-c35c-47b6-812b-2d7e1b6a2afb | SCIP notification number (Finland) | d9d17291-a441-48d0-bb8c-71798a95781e |
| SCIP notification number (France) | 9dd56de8-b284-49e7-b258-27276d2c307b | SCIP notification number (Germany) | f4d2f3a3-6770-435b-85ea-0c68ff3f0cdc |
| SCIP notification number (Hungary) | 96bafdbf-dfd1-4a05-a4db-26f3c303fefd | SCIP notification number (Italy) | b9e61f3c-b330-4140-993c-3a0c7d319f05 |
| SCIP notification number (Netherlands) | da423579-a0b2-43e8-8a3e-8233cc08e6d8 | SCIP notification number (Poland) | 4f22f942-2775-4bb5-ab3c-1044df56f9a5 |
| SCIP notification number (Romania) | ac619a1e-3c05-427b-bafd-92fcde65afd0 | SCIP notification number (Sweden) | 3bd2dd5a-bc65-4d97-a08c-53025af221f4 |
Specifications may be subject to change without notice
