750-962
Product ID:44619
Updated: 2026/7/13
Key Features

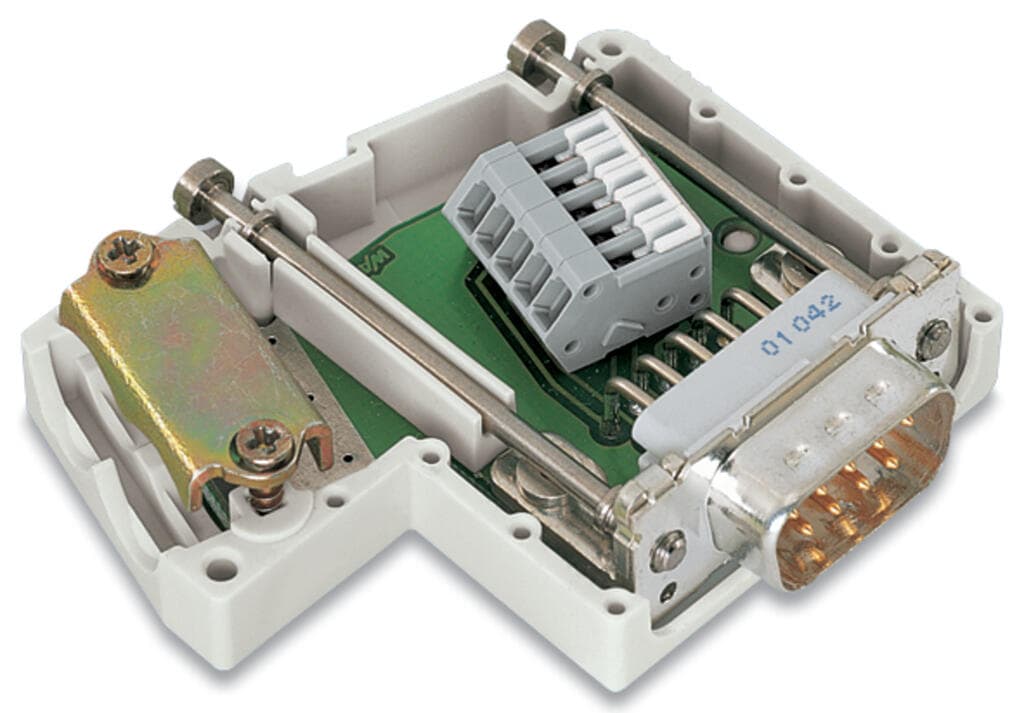

- 1High-Quality D-Sub Connector: The WAGO 750-962 features a 9-position D-Sub plug with male pins, ensuring robust and reliable connections.
- 2RoHS Compliant: Meets RoHS standards, ensuring environmental compliance and high-quality components.
- 3Wide Operating Temperature Range: Operates between 0°C and +60°C, suitable for various industrial environments.
- 4Efficient Data Transfer: Designed for efficient data transfer in automation and control systems, facilitating seamless communication between devices.
- 5Custom Cable Solutions Available: LCSC offers custom cable solutions that comply with RoHS and UL standards, providing flexible service with no minimum order requirements.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Connection type | D-sub 9 socket | Number of poles | 9 |
| Communication/fieldbus | INTERBUS | Transmission rate | 2 MBd ( (per INTERBUS specification)) |
| Connection type 1 | CAGE CLAMP?terminal strip with locking slide (218 Series) | Solid conductor | 0.08 … 0.5?mm2?/ 28 … 20?AWG |
| Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 45?mm?/ 1.772?inches |
| Height | 16?mm?/ 0.63?inches | Depth | 54?mm?/ 2.126?inches |
| Connectable sheathed cable diameter | 4.5 … 9.5?mm | Housing material | PA66-105-V2 |
| Weight | 33.1g | Color | light gray |
| Ambient temperature (operation) | 0 … +60 °C | Ambient temperature (storage) | -25 … +85 °C |
| Protection type | IP20 | Relative humidity (without condensation) | 95% |
| Fire load | 0.286MJ | Product Group | 15 (I/O System) |
| eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
| ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | bag | Country of origin | DE |
| GTIN | 4017332810715 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
