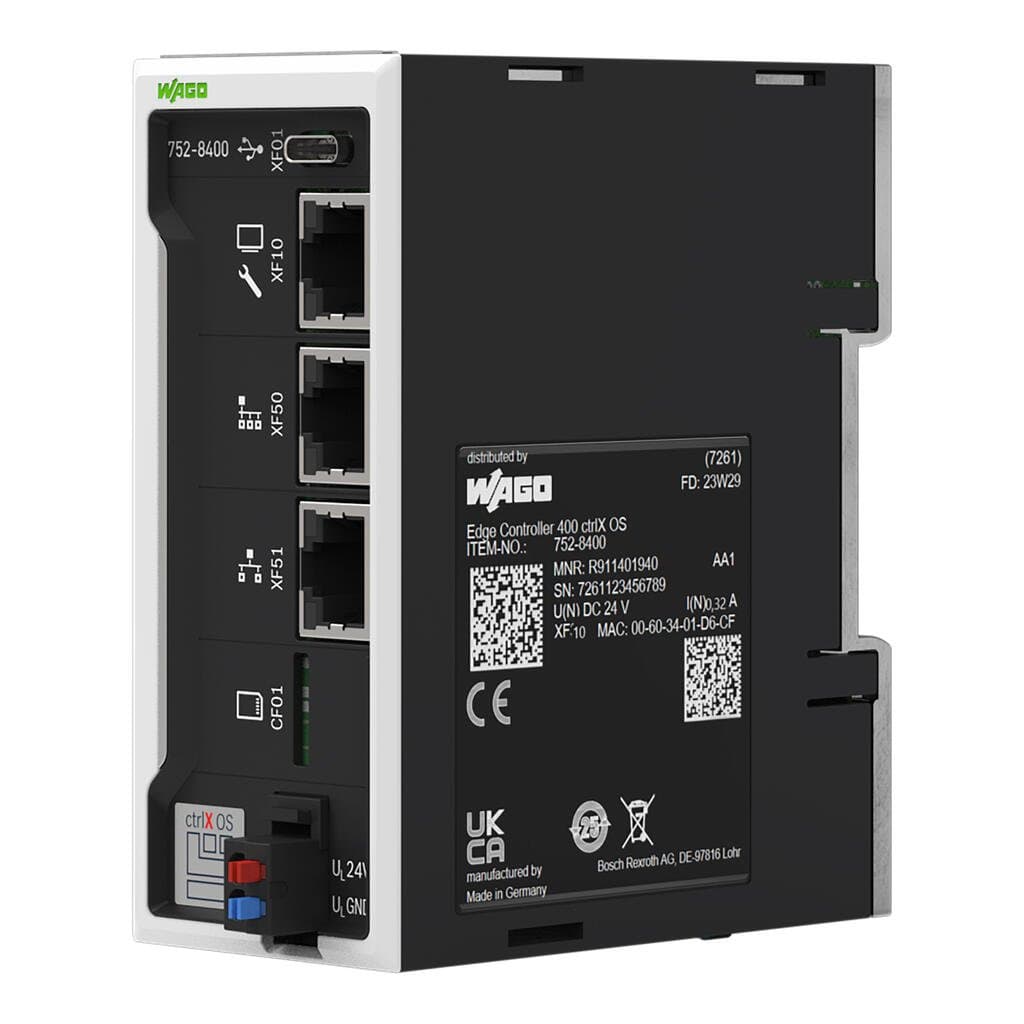

752-8400
Product ID:38333
Updated: 2026/7/13
Key Features
- 1Multi-core CPU Performance: The WAGO Edge Controller 400 features a multi-core CPU for enhanced processing power.
- 2Linux-based ctrlX OS: Runs on the Linux-based ctrlX OS operating system, supporting various applications and tools.
- 3Flexible App Technology: Utilizes app technology similar to mobile phones, allowing for easy adaptation to specific tasks.
- 4Extensive Diagnostic Functions: Includes extensive diagnostic functions for real-time data management and transparency.
- 5Compact Design: Measured at 42 mm x 108.2 mm x 97.4 mm, making it ideal for DIN-35 rail mounting.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating system | ctrlX OS | Processor | Zynq UltraScale+, 64 bits, 4 × ARM A53 |
| Main memory (RAM) | 2 GB, DRAM | Internal memory (flash) | 4 GB, eMMC |
| Non-volatile hardware memory | 128Kbytes | Type of memory card | microSD up to 32 GB (all guaranteed properties only valid with WAGO's memory card) |
| Interfaces (USB) | 1 x USB host, type C (USB2.0), maximum cable length: 3 m | Supply voltage | 24 VDC, SELV/PELV (18 … 31.2 V); (includes all tolerances, including ripple); Internal fuse protection with eFuse, 1.5 A; Overvoltage protection: the fuse can trip in the event of overvoltage; Transient protection: suppressor diodes; Pulse load up to 1500 W; Voltage drops on power supply interfaces: PS1 < 1 ms; Evaluation criterion A |
| Overvoltage category | 2 per IEC 60664-1 | Current consumption, typ. | 320 mA |
| Power consumption (typ.) (24 V) | 7.68W | Isolation | 707 VDC (24 V supply to functional ground); 1200 VDC (24 V supply to XF10, XF50, XF51) |
| Width | 42 mm / 1.652 inches | Height | 108.2 mm / 4.256 inches |
| Depth | 97.4 mm / 3.831 inches | Weight | 314g |
| Ambient temperature (operation) | -25 … +55 °C (up to 2000 m;-25 … +50 °C (2000 … 3000 m); -25 … +45 °C (3000 … 4000 m); -25 … +40 °C (4000 … 5000 m)) | Ambient temperature (storage) | -40 … +70 °C |
| Protection type | IP20 | Note on protection type | not evaluated by UL |
| Pollution degree | 2 per EN 61010-1; no condensation permissible | Protection class | III per DIN EN 61010-2-201 |
| Operating altitude | 0 … 5000 m | Relative humidity | 5 … 85 % |
| Vibration resistance | Per DIN EN 60068-2-6; vibrations, sinusoidal in all 3 axes; 5 Hz to 8.4 Hz with 3.5 mm amplitude; 8.4 Hz to 150 Hz with 1g peak acceleration; broadband noise per DIN EN 60068-2-64; 5-20-150 Hz with 0.572g, 5 h per axis | Shock resistance | Per DIN EN 60068-2-27; Shock stress: shock resistance in all 3 axes 11 ms, semi-sinusoidal 15g |
| ESD (contact/air discharge) | Per DIN EN 61131-2; Criterion B; Test voltage: 4 kV for contact discharge; 8 kV for air discharge | EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 | ETIM 9.0 | EC001413 |
| ETIM 8.0 | EC001413 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1 pcs | Packaging type | Box |
| Country of origin | DE | GTIN | 4066966463057 |
| Customs tariff number | 84715000000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
