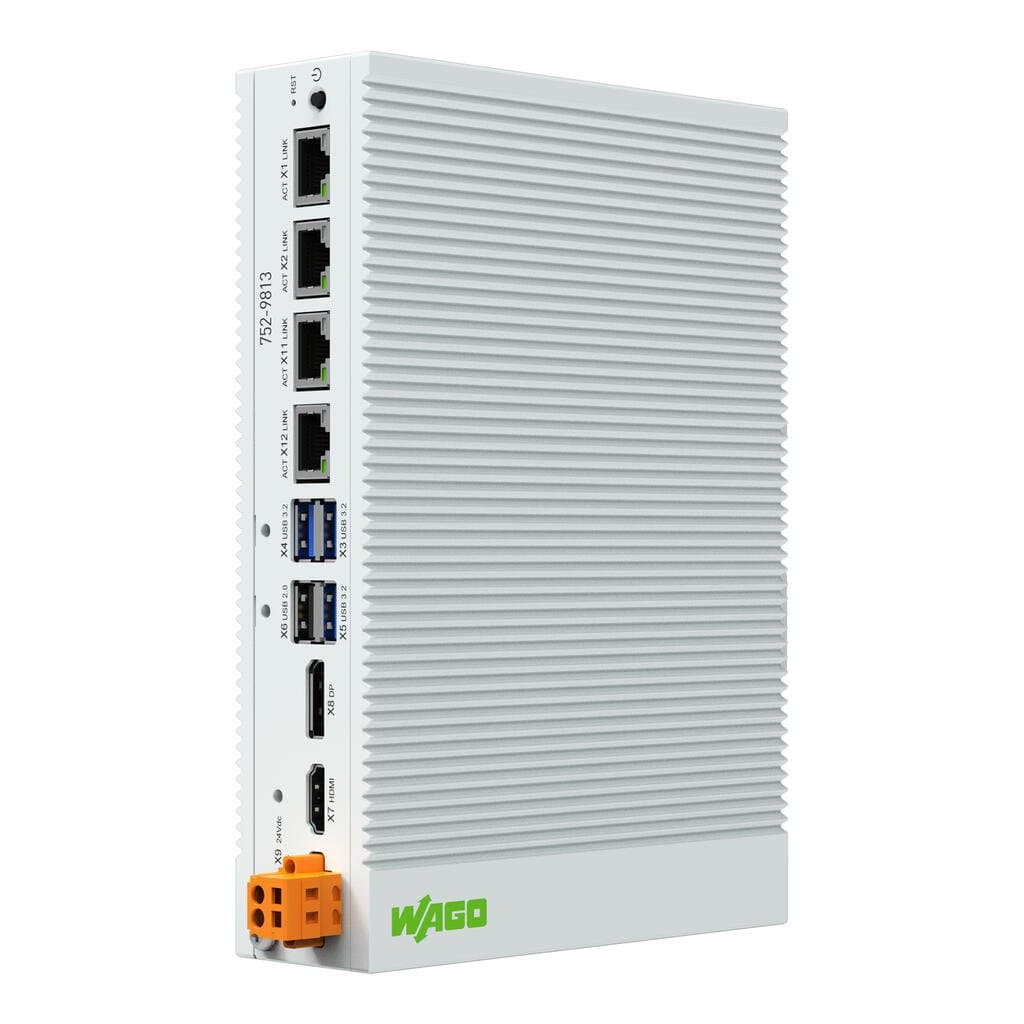

752-9813
Product ID:38368
Updated: 2026/7/13
Key Features
- 1Industrial-grade connectivity: 4 x Ethernet interfaces for connecting to field devices and IT networks.
- 2Versatile I/O options: 4 x USB interfaces for connecting USB sticks, mice, or keyboards.
- 3High-resolution display: HDMI and DisplayPort interfaces for connecting high-resolution displays.
- 4Robust memory configuration: Equipped with 32GB RAM and 256GB FLASH for efficient data storage.
- 5Compact design: Ideal for DIN-RAIL mounting in control cabinets or housings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| ETHERNET protocols | DHCP | Visualization | Web server |
| Operating system | Debian Linux | Processor | Intel i7-1185G7E Processor 4 x 1.8 GHz (max. 4.40 GHz) |
| Security-Modul | TPM 2.0 chip | Main memory (RAM) | 32 GB; DDR4 SODIMM |
| Internal memory (flash) | 256 GB; m.2 SSD | Memory expansion | 2 x mPCIe slot, 1 x M.2 B and SATA 2.5“ SSD |
| SIM card type | Nano-SIM | Interfaces | 1 x DisplayPort 1.4a, 4096 x 2304 @60 Hz; 1 x HDMI 1.4, 3840 x 2160 @30 Hz |
| Indicators | 3 x LED | Supply voltage | 24 VDC (10 … 36 V) |
| Input current (typ.) at nominal load (24?V) | 1258mA | Input current (max.) (24 V) | 3542mA |
| Operating power | 30.2 W (typ.); 85 W (max.) | Connection technology: communication/fieldbus | 4 x RJ-45 1000BASE-T; 3 x USB 3.2 (type A); 1 x USB 2.0 (type A) |
| Width | 45 mm / 1.772 inches | Height | 200 mm / 7.874 inches |
| Depth | 140 mm / 5.512 inches | Weight | 1810g |
| Housing material | Aluminum, powder-coated | Ambient temperature (operation) | -20 … +60 °C |
| Ambient temperature (storage) | -40 … +85 °C | Protection type | IP40 |
| Relative humidity (without condensation) | 95% | Mounting type | DIN-35 rail |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
| Packaging type | Box | Country of origin | TW |
| GTIN | 4066966580266 | Customs tariff number | 84715000000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
