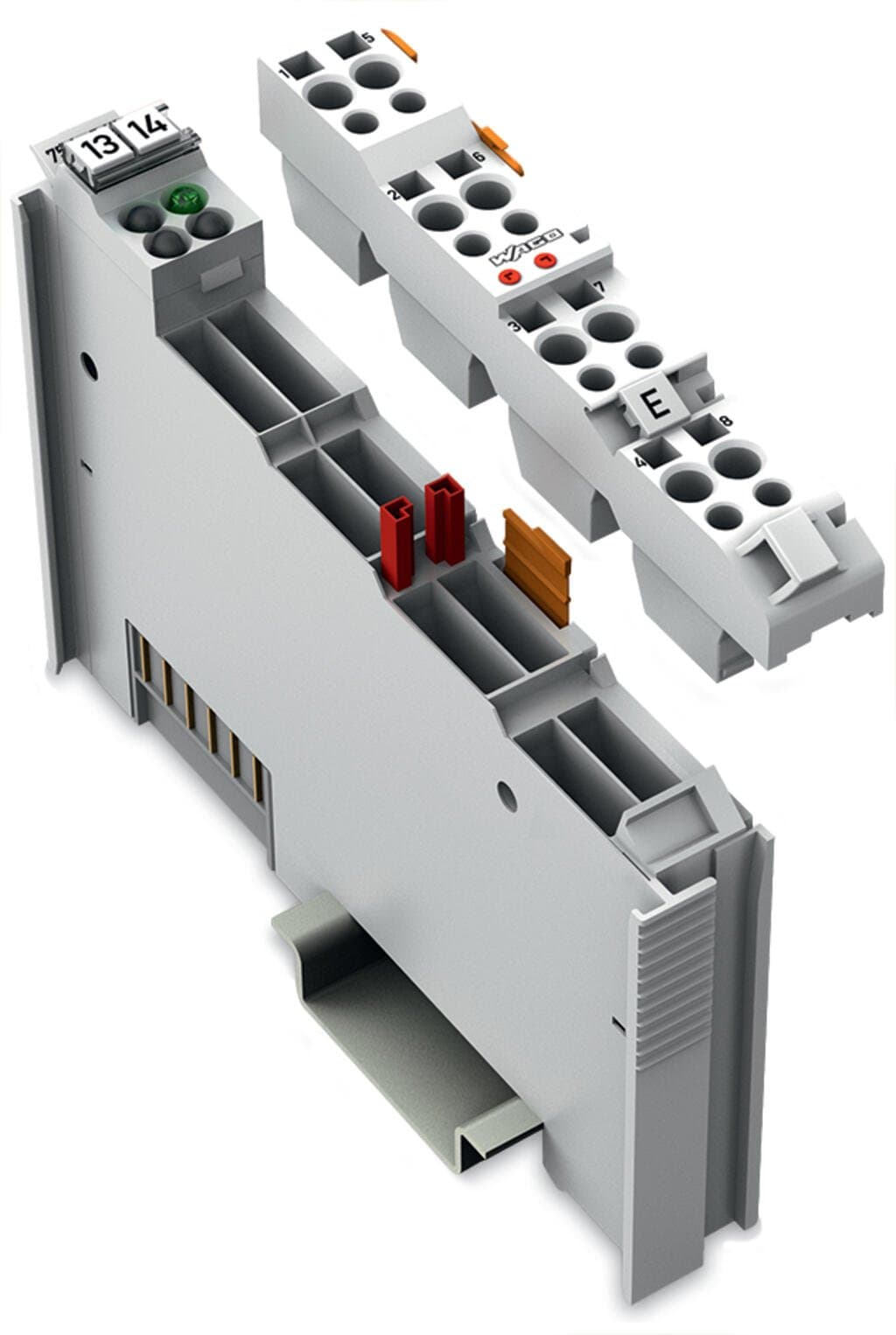

753-602
Product ID:39017
Updated: 2026/4/3
Key Features
- 1Robust Design: Built with polycarbonate and polyamide 6.6 for durability.
- 2Versatile Mounting: Compatible with DIN-35 rail mounting for easy installation.
- 3High Current Output: Delivers 10A of current for demanding applications.
- 4Marine and Industrial Use: Compliant with marine and hazardous location standards (ATEX, UL, etc.).
- 5Compact Size: Measures 100mm x 12mm x 69.8mm for space-efficient designs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Pluggable connectors and coding fingers (753 Series) are not included. | Signal type | Voltage |
| Signal type (voltage) | 24?VDC | Supply voltage (system) | 5?VDC;?via data contacts |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP?connection; transmission (field-side supply voltage only) via spring contact | Indicators | LED (C) green: operating voltage status: power jumper contacts |
| Number of outgoing power jumper contacts | 3 | Current carrying capacity (power jumper contacts) | 10A |
| Connection technology: field supply | 6 x CAGE CLAMP? | Connection type 1 | Field supply |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 12?mm?/ 0.472?inches |
| Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
| Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
| Pluggable connector | Pluggable | Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.055MJ | Weight | 36.5g |
| Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
| Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
| Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
| eCl@ss 10.0 | 27-24-26-10 | eCl@ss 9.0 | 27-24-26-10 |
| ETIM 9.0 | EC001600 | ETIM 8.0 | EC001600 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454394608 | Customs tariff number | 8538901000 |
| CAS-No. | 1303-86-2 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 6ba2c5ff-0859-4495-b7f5-2f341d961483 | SCIP notification number (Belgium) | 54966c53-b946-4ad6-b499-7c838e430680 |
| SCIP notification number (Bulgaria) | eed1d47b-432e-4612-a924-3f75e7b85582 | SCIP notification number (Czech Republic) | cb705837-230c-4961-884d-1b7ab34fd443 |
| SCIP notification number (Denmark) | 975f4548-9869-4812-b5e3-b375e6e0f920 | SCIP notification number (Finland) | d480760d-1b92-4160-ba8d-988cd4a6a2c8 |
| SCIP notification number (France) | 7ebb22eb-9911-4188-818d-5d29b6aea1a4 | SCIP notification number (Germany) | fa9708f5-eab6-44c7-ad3e-89f917bd629c |
| SCIP notification number (Hungary) | 881d2539-3155-44ef-92a5-a5a54375bde4 | SCIP notification number (Italy) | b0a54ccd-c2dc-4c61-8bd9-9818372560f9 |
| SCIP notification number (Netherlands) | c1572afc-e307-4051-b980-afb7c0e2abf2 | SCIP notification number (Poland) | 4a170c60-7ce4-4284-861a-594496d65dbd |
| SCIP notification number (Romania) | 3bad4e0e-ced9-43ba-a149-f101192f5ddb | SCIP notification number (Sweden) | 47ed4ecc-d177-4d78-9df0-47bc611ce976 |
Specifications may be subject to change without notice
