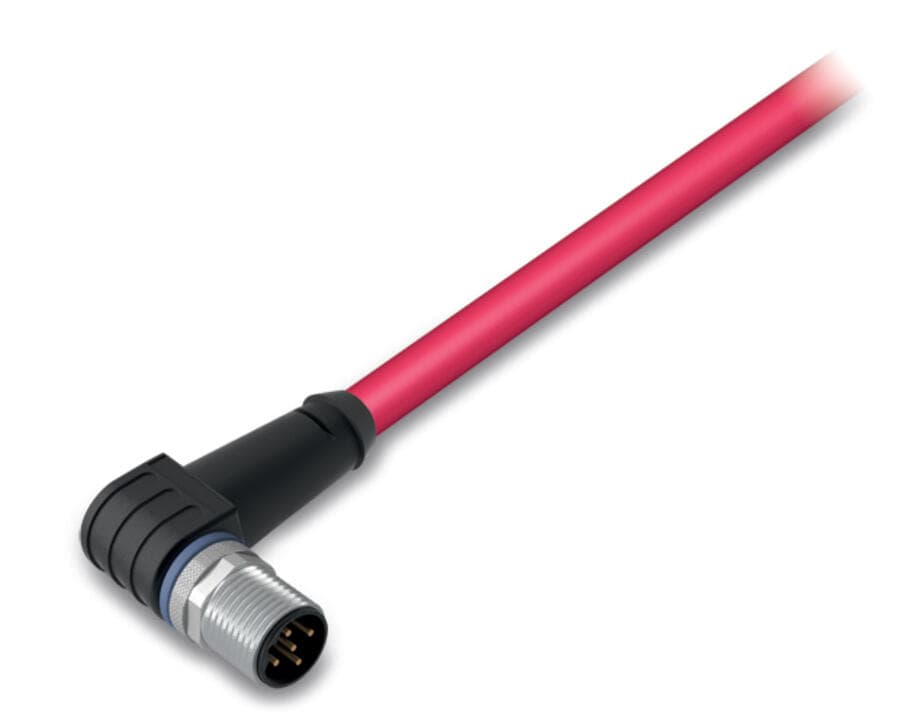

756-1602/060-020
Product ID:39173
Updated: 2026/7/13
Key Features
- 1Angled design for easy installation.
- 22-meter length for versatile connectivity.
- 3M12D plug for secure and reliable connections.
- 4Suitable for drag chains and harsh environments.
- 5High resistance to microbes, hydrolysis, oil, ozone, and more.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Connection type | M12 plug - free end | Number of poles | 4 |
| Cable connection direction to mating direction | 90° | Connector interface coding (cable/adapter) 1 1 | D-coded |
| Cable length | 2m | Communication/fieldbus | sercos |
| Operating voltage | 250?V | Operating current | 4A |
| Rated surge voltage | 2?kV | Contact resistance | 10mΩ |
| Insulation resistance | ≥ 5 x 108Ω/km | Conductor resistance | < 57 Ω/km |
| Bending radius | Single: 4 x cable diameter (min.); Multiple: 8 x cable diameter (min.) | Bending cycles | 3Mio. |
| Drag chain capability | yes | Type code | 02YH(ST)C11Y 2x2x0.75/1.5-100 LI RT VZN FRNC, shielded |
| Shield | Overlapped aluminum-laminated foil and tinned copper braid, optical coverage approx. 85 % | Conductor configuration | Bare copper wire (7 x 0.25 mm) |
| Conductor insulation | Halogen-free PE | Housing material | TPU/TPU, black (~ RAL 9005) |
| Tightening torque | 1?Nm | Weight | 160g |
| Color | red | Ambient (operating) temperature (dynamic) | -40 … +70 °C |
| Ambient (operating) temperature (static) | -40 … +70 °C | Protection type | IP67 |
| Pollution degree | 3/2 per IEC 60664-1 | eCl@ss 10.0 | 27-06-18-01 |
| eCl@ss 9.0 | 27-06-18-01 | ETIM 9.0 | EC002599 |
| ETIM 8.0 | EC002599 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4050821591467 |
| Customs tariff number | 8544429090 | End of Sale | 2024-05-01 |
| End of Production | 2024-05-15 | End of Delivery | 2024-06-01 |
| End of Service and Repair | 2025-06-01 | RoHS Compliance Status | Compliant,No Exemption |
