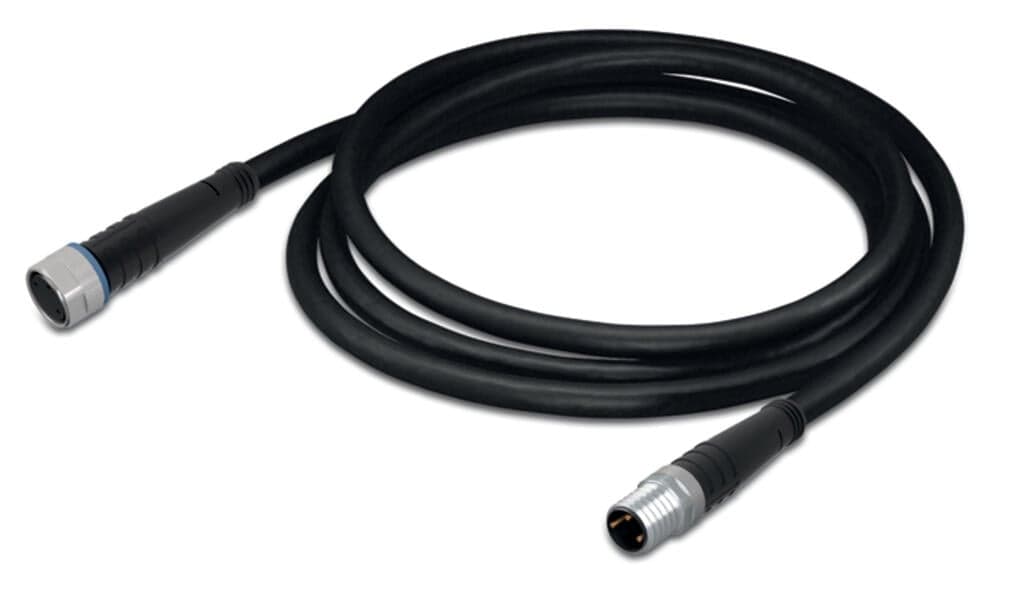

756-5201/030-005
Product ID:43071
Updated: 2026/10/14
Key Features
- 1Made from durable polyurethane (PUR) with halogen-free properties.
- 2Ensures reliable operation in harsh environments.
- 3Provides efficient connectivity for various automation tasks.
- 4Available in 0.5 meters for easy integration.
- 5Compatible with other WAGO products for seamless system integration.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
| Packaging type | Box | Country of origin | DE |
| GTIN | 4050821114178 | Customs tariff number | 8544429090 |
| CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 31d99352-742a-4ece-8dbc-2c09c8a1a3ce | SCIP notification number (Belgium) | 93b626b8-6af2-4040-bee5-e746e69c5e6f |
| SCIP notification number (Bulgaria) | 792e49b7-fe41-4223-918c-e7f5e449f0b6 | SCIP notification number (Czech Republic) | 348d95f4-985f-4afd-b1e3-b998a9469d6f |
| SCIP notification number (Denmark) | 20dc1cb2-74ca-43a1-ba43-e045a826aeb9 | SCIP notification number (Finland) | 1f148838-931e-48a5-ae71-9f47282d10d3 |
| SCIP notification number (France) | 1ed4574d-1bdb-44bc-bfdb-c3cd40ffda0c | SCIP notification number (Germany) | e2e7c833-ad46-4bd8-84c8-c1e48fe60c25 |
| SCIP notification number (Hungary) | b5f790d4-2fae-475e-a13d-e1030a41357e | SCIP notification number (Italy) | b108e248-9e17-4494-bbb7-fc4c7a592383 |
| SCIP notification number (Netherlands) | 5eacd058-5193-4a8f-a57b-617b2935b264 | SCIP notification number (Poland) | 308e1739-a324-4c91-9b63-f44fe3a7afaf |
| SCIP notification number (Romania) | c1bcb63e-6bee-453b-a3aa-06f66e299ea5 | SCIP notification number (Sweden) | bbc62dbd-f166-4ff3-97c1-d3198b768b68 |
| Operating voltage | 60?VAC/DC | Operating current | 4A |
| Rated surge voltage | 1.5?kV | Insulation resistance | >109Ω |
| Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
| Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
| Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
| Torsional capacity | 180 | Cable length | 0.5m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black | Connection type | M8 socket - M8 plug |
| Number of poles | 3 | Cable connection direction to mating direction | 0° |
| Cable connection direction to mating direction (2) | 0° | Housing material | Polyurethane (PUR) |
| Contact material | CuSn | Tightening torque | 0.6?Nm |
Specifications may be subject to change without notice
