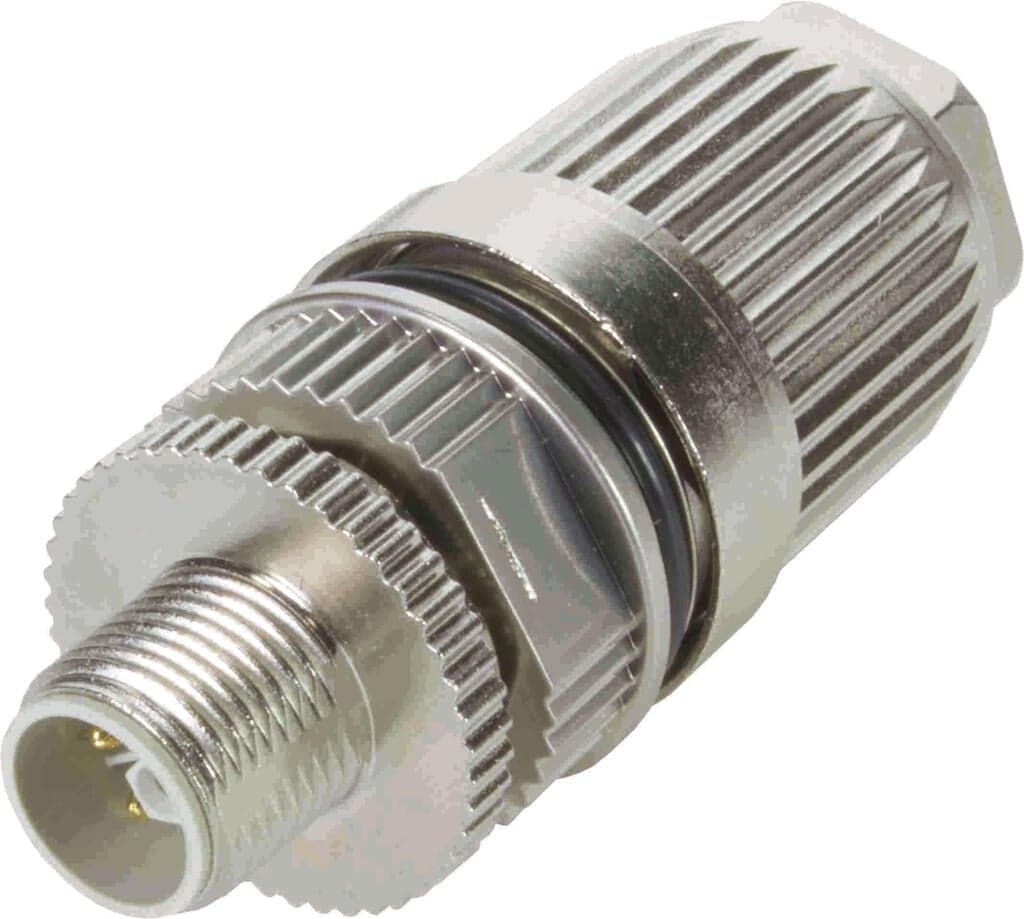

756-9701/050-000
Product ID:47866
Updated: 2026/7/13
Key Features
- 1High-quality materials ensure durability and long-lasting performance.
- 2Easy-to-use design simplifies installation and maintenance processes.
- 3Compact size fits perfectly in tight spaces, ideal for industrial applications.
- 4Secure connections provide reliable electrical connections in demanding environments.
- 5Versatile compatibility with various wiring systems and configurations.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Connection type | M12 plug | Number of poles | 5 |
| Cable connection direction to mating direction | 0° | Connector interface coding (cable/adapter) 1 1 | L-coded |
| Rated surge voltage | 1.5?kV | Contact resistance | 10mΩ |
| Insulation resistance | >108Ω | Connection type 1 | Pin penetration technology |
| Solid conductor | 0.75 … 1.5?mm2?/ 18 … 16?AWG | Housing material | Zinc die casting |
| Tightening torque | 0.6?Nm | Weight | 84.7g |
| Ambient temperature (operation) | -40 … +85 °C | Protection type | IP65 |
| Note on protection type | IP67 when mated; per IEC 60529 | Pollution degree | 3 |
| ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | bag | Country of origin | RO |
| GTIN | 4055144018400 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
