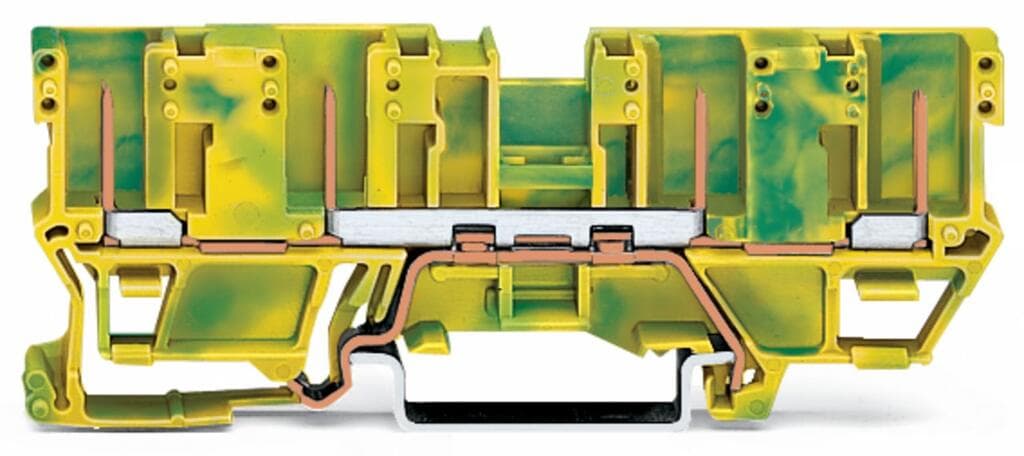

769-207
Product ID:41198
Updated: 2026/7/15
Key Features
- 1Compact Design: Ideal for DIN-rail 35 x 15 and 35 x 7.5 mounting.
- 2Robust Construction: Made from high-quality polyamide (PA66) for durability.
- 3Easy Installation: Front-entry wiring for quick and secure connections.
- 4Safety Features: Overvoltage category III and pollution degree 3 compliant.
- 5Versatile Compatibility: Compatible with various accessories like coding pins and end plates.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Note | 1-conductor angled female plugs cannot be used. |
| Total number of potentials | 1 | Number of levels | 1 |
| Width | 5?mm?/ 0.197?inches | Height | 87.5?mm?/ 3.445?inches |
| Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches | Design | horizontal type |
| Mounting type | DIN-35 rail | Marking level | Center marking |
| Note (material data) | Information on material specifications can be found here | Color | green-yellow |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.161MJ |
| Weight | 10.2g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
| eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
| ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918827775 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-2 |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
